Fast & Efficient Stripping
Boosts productivity with quick processing.
Stripping Machines

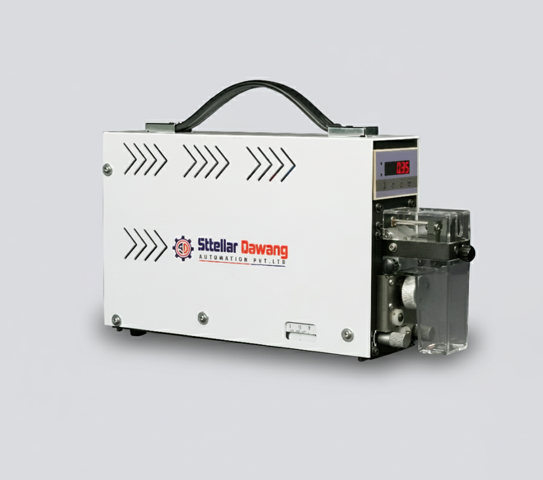

CoreStrip-06
Electric wire stripper for 0.25 to 6 sq.mm
Compact and efficient, this machine is ideal for stripping discrete wires and small multi-core cables. It offers fast processing, no blade change for different wire diameters, and extremely short cycle times — making it perfect for precision and productivity.
The semi-auto wire stripping machine offers fast and precise stripping with easy digital adjustments.
It features one-touch operation, accurate positioning, and flexible controls for different wire sizes.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
High Precision
Ensures accurate cutting and stripping without wire damage.
One-Touch Operation
Simple, user-friendly control system.
Easy Digital Adjustments
Quick setup for multiple wire sizes and lengths.
Technical Specifications
Model
CoreStrip-06
Operating Interphase
Keypad Interphase
Type
Electrical
Wire Size Range
0.3–6 mm²
Max. Outer Diameter
6 mm
Stripping Length
1–20 mm
Partial Strip
Yes
Pull-off Length
6–20 mm
Power Supply
AC 220V, 50/60Hz
Weight
5 kg
Dimensions (L×W×H)
370 × 90 × 180 mm
Requried Power
300 Watts
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
