Intelligent Control
Fully automated system ensures precision.
Cutting Stripping Machines

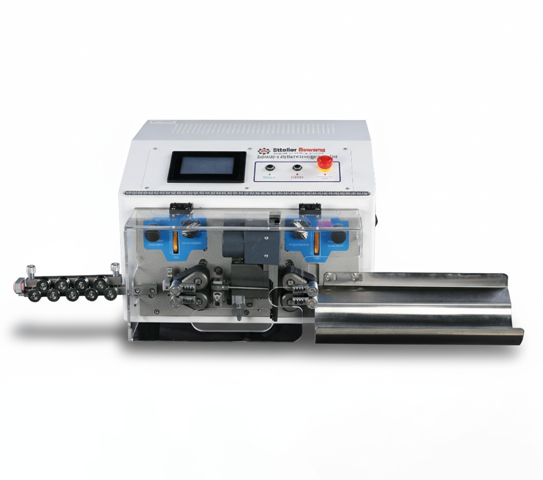

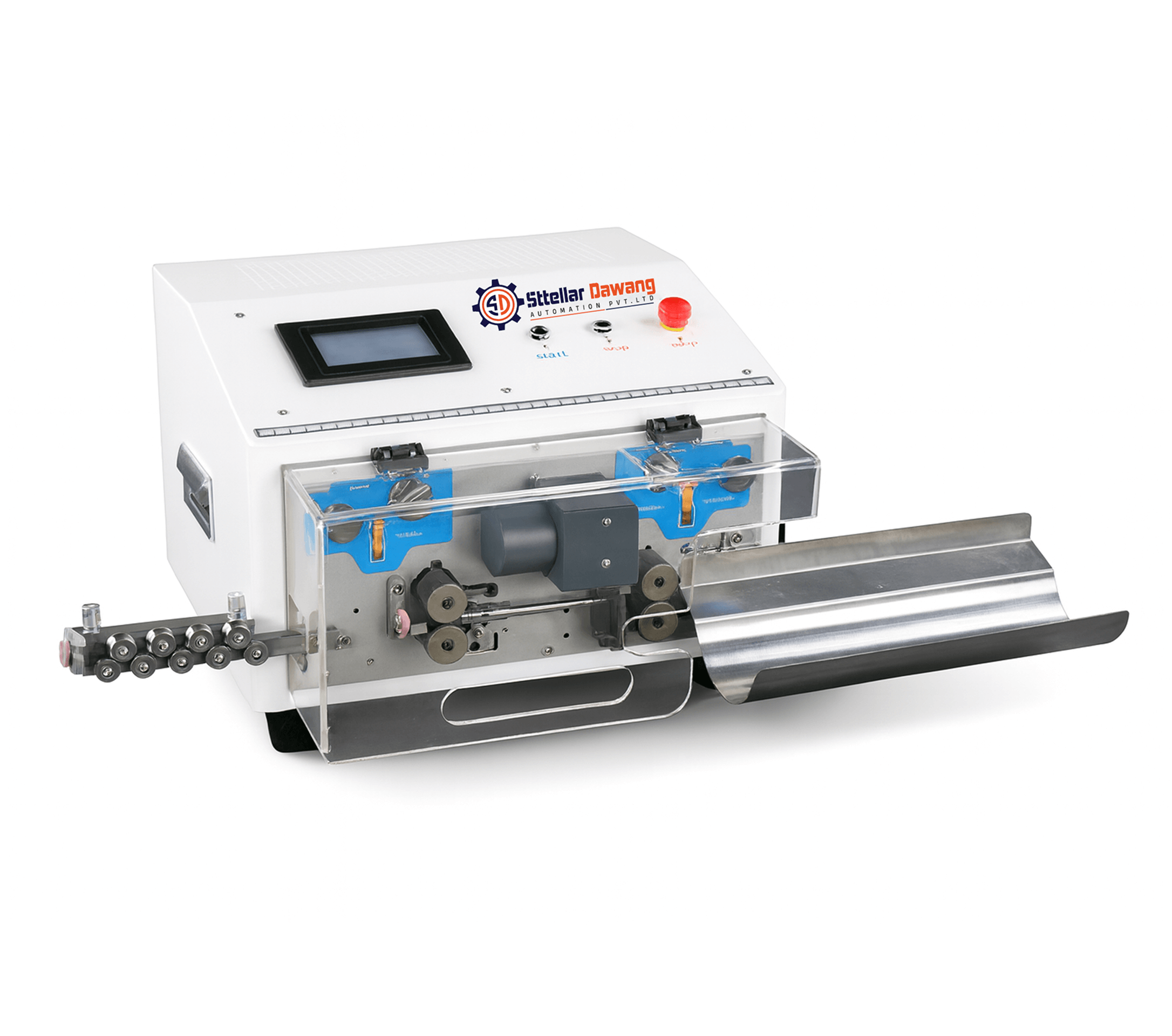

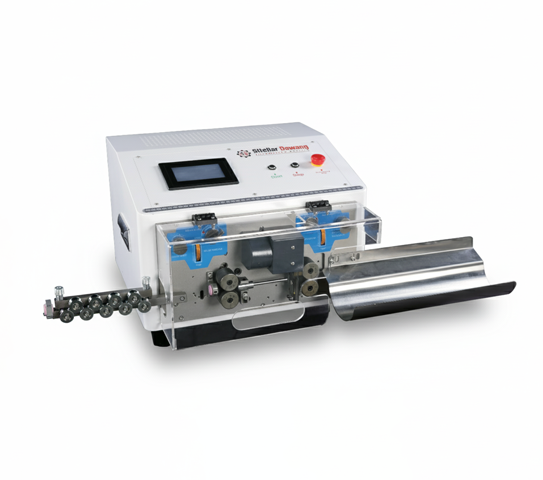

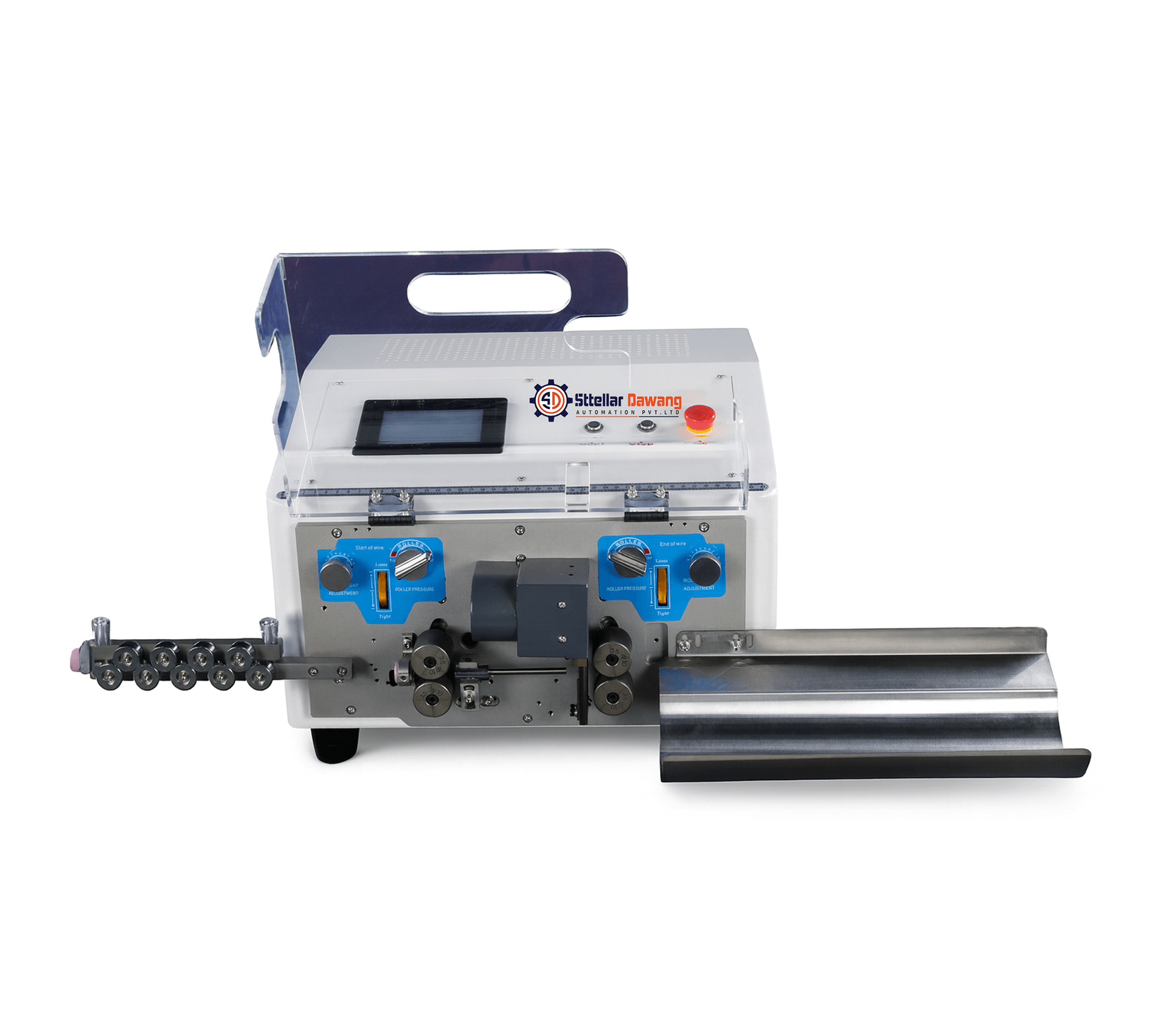

PrimeStrip-600
Automatic Cable Cutting & Stripping Machines For cable sizes up to 6 sq.mm
Process 1–6mm² wires, fully automatic, boosts speed, saves labor, ideal for wire harnesses in automotive, appliances, and instrumentation.
Fully automated, intelligent control, supports PVC, Teflon, silicone and glass fiber cables.
Easy English display, low maintenance, optional device connections, boosts speed, and saves labor.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Wide Cable Support
Handles PVC, Teflon, silicone, fiberglass.
User-Friendly Interface
Simple English interface, easy operation.
Efficiency & Savings
Boosts speed, reduces labor, low maintenance.
Technical Specifications
Model
PrimeStrip-600
Wire Cross Section
0.2 – 6.0 mm²
Electrical Connection
110V / 220V, 50Hz / 60Hz
Power
300 W
Operation Interface
4.3/6 inch C Touch screen display
Machine Dimension
460 × 470 × 325 mm
Wire Length Range
1 – 9999 mm
Strip Length
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
± (0.002 × L) mm
Intermediate Peeling Times
16 times
Max Conduit Inside Diameter
6 mm
Wire Material
PVC, Teflon, Braided, Fiberglass wire
Blade Material
Hard tungsten steel
Transport Speed
(L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
