Precise Cutting & Stripping
Adjustable lengths for thin wires.
Cutting Stripping Machines

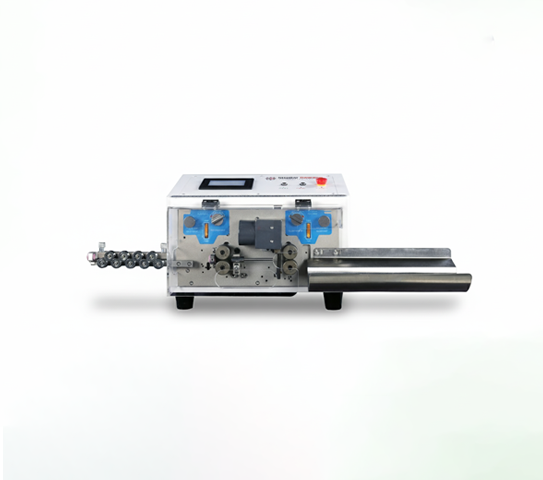

PrimeStrip-400
Automatic Cable Cutting & Stripping Machines For cable sizes up to 4 sq.mm
Efficient, precise, and consistent cutting and stripping of thin wires with advanced technology.
Precise thin wire cutting and stripping with adjustable lengths and a user-friendly interface.
Durable, safe, and compact design, suitable for a wide range of wire types.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
User-Friendly Interface
Simple controls for easy operation.
Durable & Safe Design
Reliable performance with operator safety.
Compact & Versatile
Suitable for a wide range of wire types.
Technical Specifications
Model
PrimeStrip-400
Wire Cross Section
0.2 – 4 mm²
Electrical Connection
110V / 220V, 50Hz / 60Hz
Power
300 W
Operation Interface
4.3-inch Touch screen display
Machine Dimension
460 × 470 × 325 mm
Wire Length Range
1 – 9999 mm
Strip Length
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
±(0.002 × L) mm
Intermediate Peeling Times
16 times
Wire Material
PVC, Teflon, Braided, Fiberglass wire
Blade Material
Hard tungsten steel
Transport Speed
(L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
