Precise Thin Wire Processing
Accurate cutting and stripping with adjustable lengths.
Cutting Stripping Machines

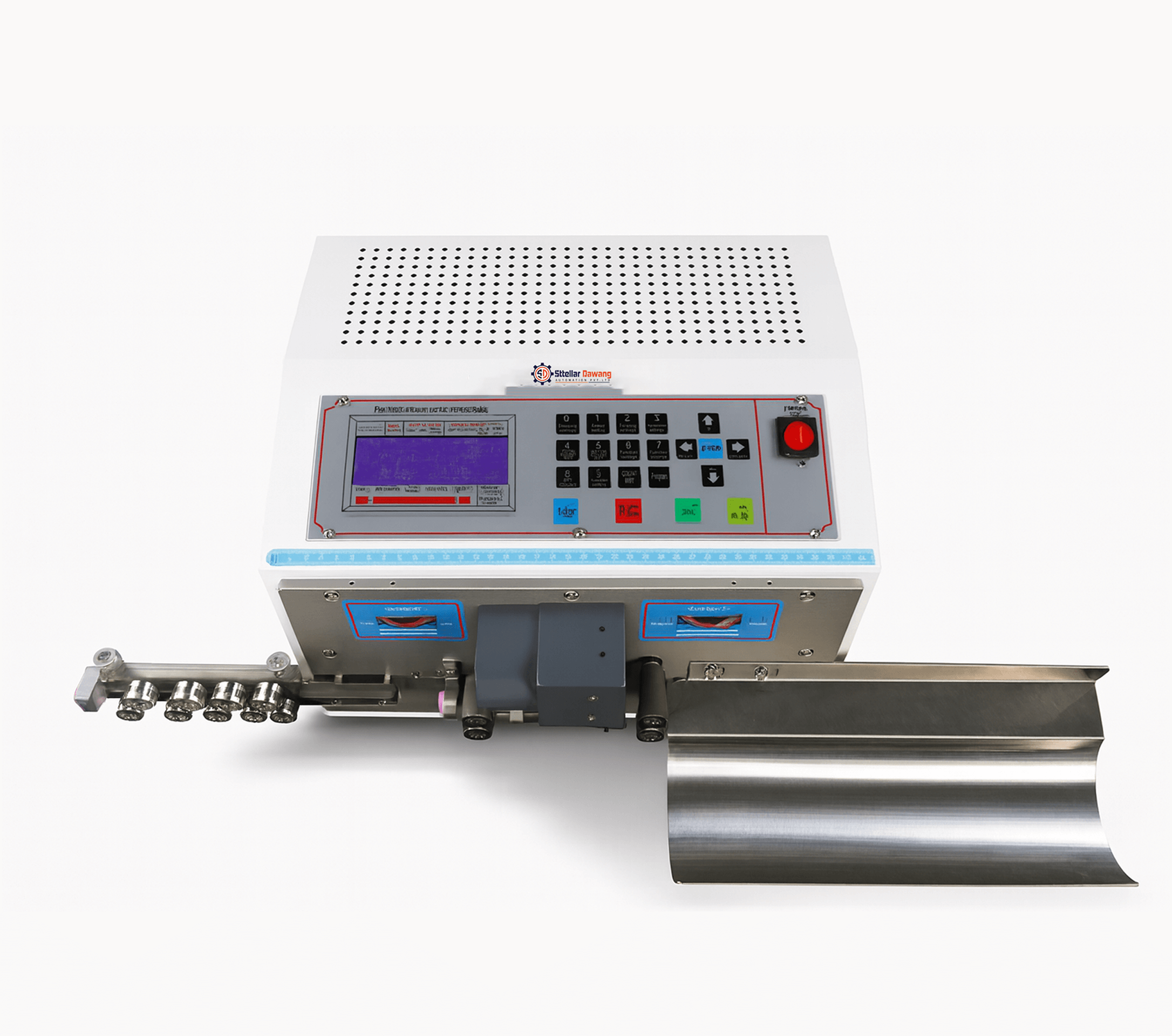

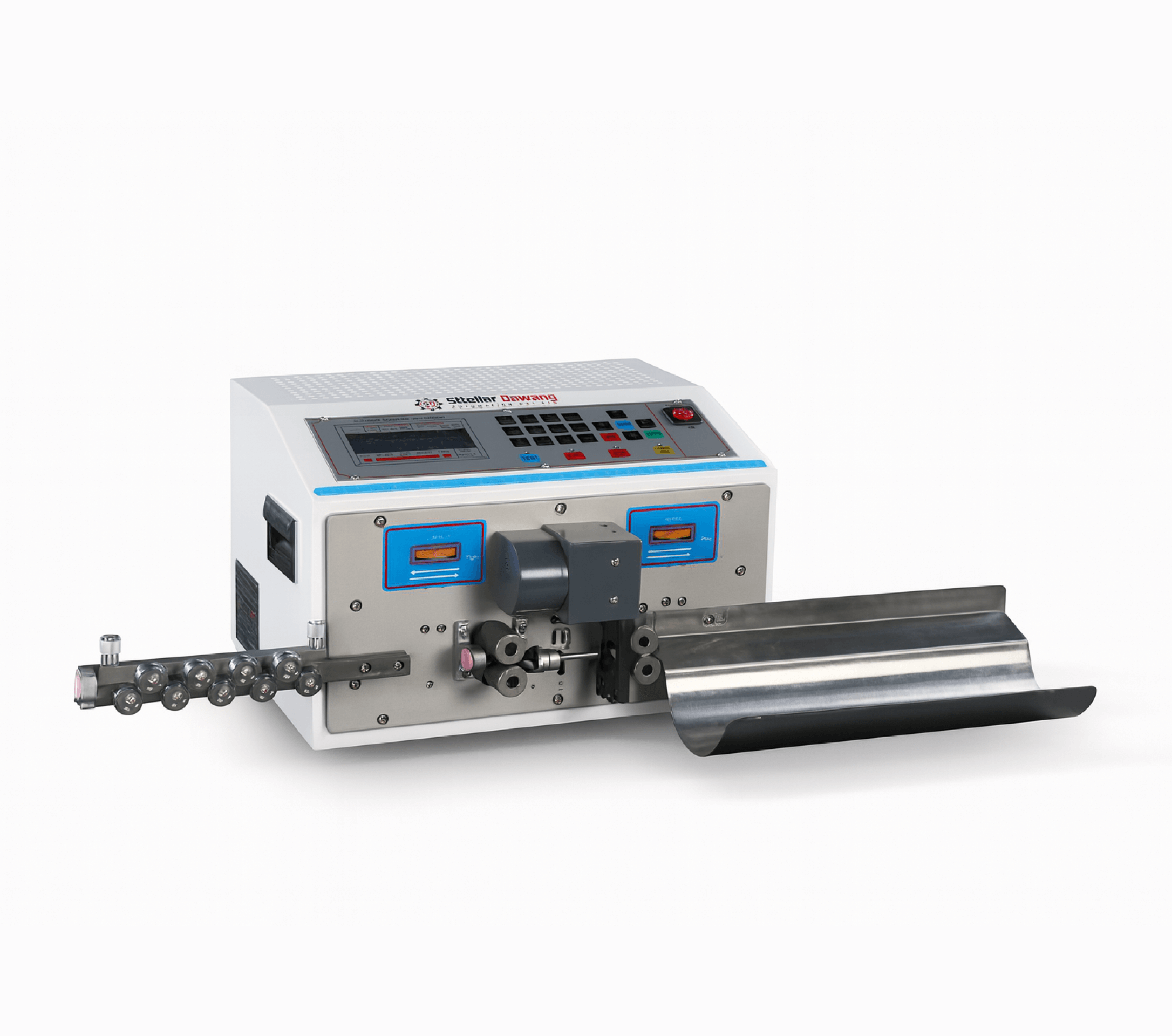

PrimeStrip-250
Automatic Cable Cutting & Stripping Machines For cable sizes up to 2.5 sq.mm
Efficient, precise, and consistent cutting and stripping of thin wires with advanced technology.
Precise thin wire cutting and stripping with adjustable lengths and a user-friendly interface.
Durable, safe, and compact design suitable for various wire types.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
User-Friendly Interface
Simple operation for quick setup and use.
Durable & Safe Design
Built for reliability with operator safety in mind.
Compact & Versatile
Space-saving, suitable for various wire types.
Technical Specifications
Model
PrimeStrip-250
Wire Cross Section
0.2 – 2.5 mm²
Electrical Connection
110V / 220V, 50Hz / 60Hz
Power
300 Watts
Operation Interface
4.3-inch Touch screen display
Machine Dimension
460 × 470 × 325 mm
Wire Length Range
1 – 9999 mm
Strip Length
Front end: 0 – 30 mm; Rear end: 0 – 8 mm
Length Accuracy
±(0.002 × L) mm
Intermediate Peeling Times
16 times
Max Conduit Inside Diameter
6 mm
Wire Material
PVC, Teflon, Braided, Fiberglass wire
Blade Material
Hard tungsten steel
Transport Speed
(L = 100 mm) 4000 – 5000 pieces/hour
Driving Mode
Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
