PrimeStrip-1600 Plus

Automatic multicore Cable Cutting & Stripping Machines

Automatic multicore Cable Cutting & Stripping Machines

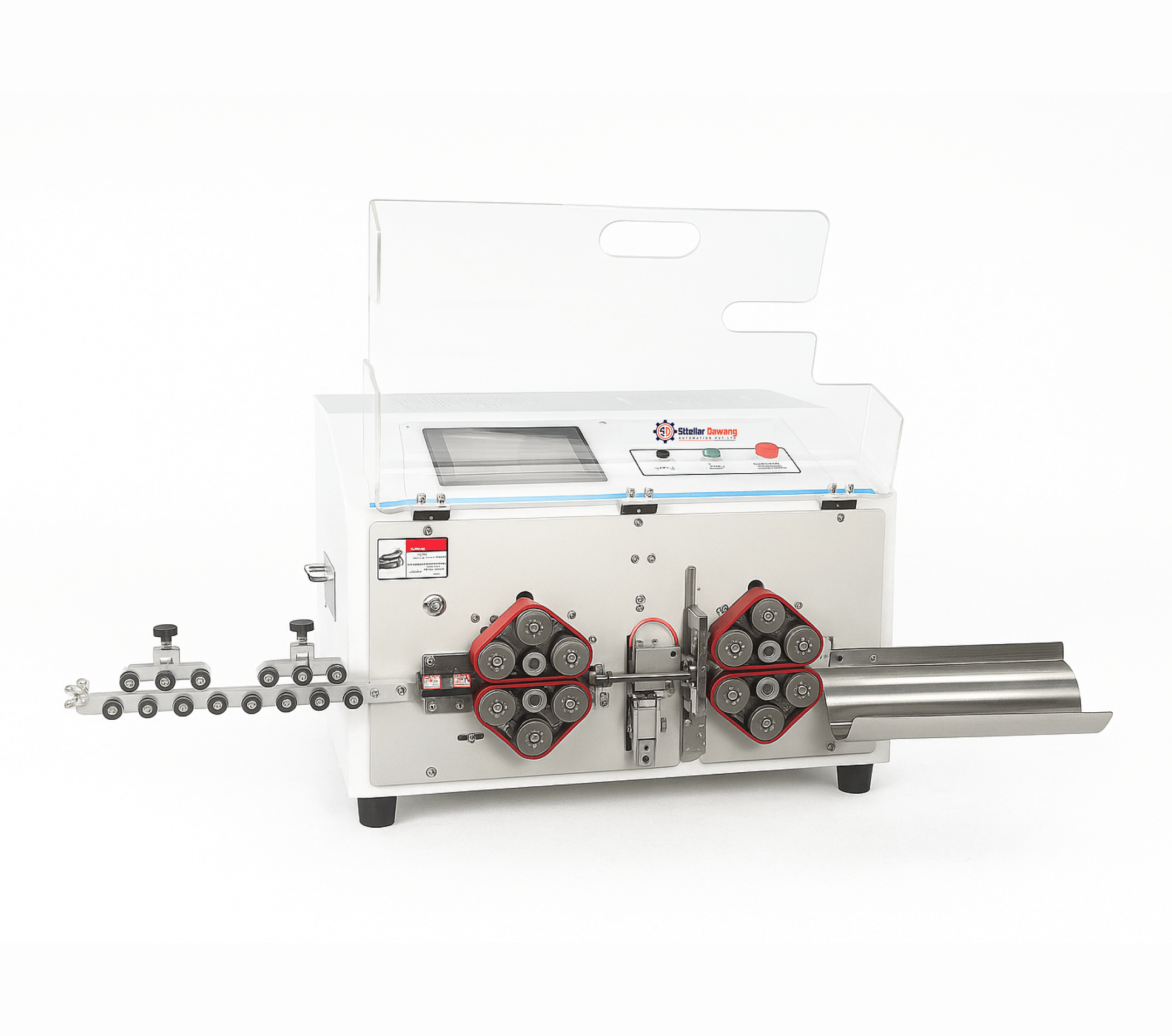

The SD-16MC is a fully automatic machine designed for cutting and stripping both the jacket and inner cores of multi-core sheathed cables. It supports processing cables with up to 7 cores, making it ideal for applications requiring high precision and efficiency

  • Supports heavy-duty cables with scratch-free feeding and advanced positioning.

  • Provides multiple optional accessories for enhanced productivity.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Heavy-Duty Cable Support

Heavy-Duty Cable Support

Built to handle large, robust cables.

Scratch-Free Feeding

Scratch-Free Feeding

Smooth processing without surface damage.

Advanced Positioning

Advanced Positioning

Ensures precise, consistent stripping and cutting.

Expandable with Accessories

Expandable with Accessories

Optional add-ons boost productivity and flexibility.

Technical Specifications

  • Model

    PrimeStrip-1600 Plus

  • Available Wire

    Outer & Inner Stripping

  • Max Supported Cores

    7 cores

  • Conductor Cross-Section *

    1-16mm²

  • Cutting Length

    1-99999mm

  • Cutting Length Tolerances

    ≤(0.002 × L) mm

  • Jacket Stripping Length *

    Head: 10-120mm; Tail: 10-80mm

  • Inner Core Stripping Length *

    Head: 1-50mm; Tail: 1-50mm

  • Conduit Diameter *

    Φ10mm

  • Production Rate

    One core wire: 2300 pcs/h; Multi-core: 800 pcs/h

  • Display Screen

    7-inch touch screen

  • Wire Feed Method

    Belt feeding

  • Drive Method

    16-wheel drive

  • Power Supply

    220V / 110V

  • Power

    1200W

  • Weight

    95kg

  • Dimensions

    60 × 50 × 62cm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
