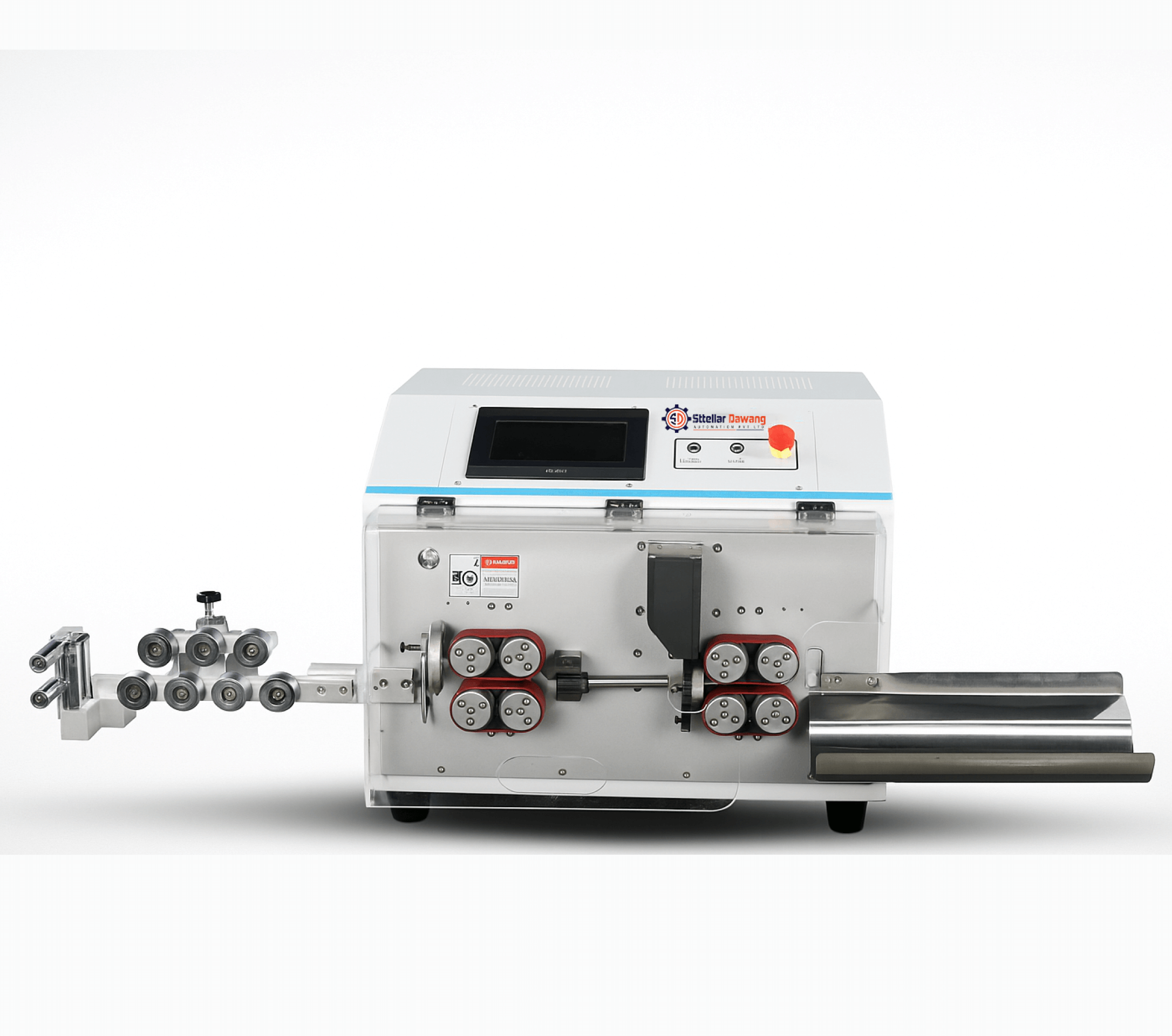

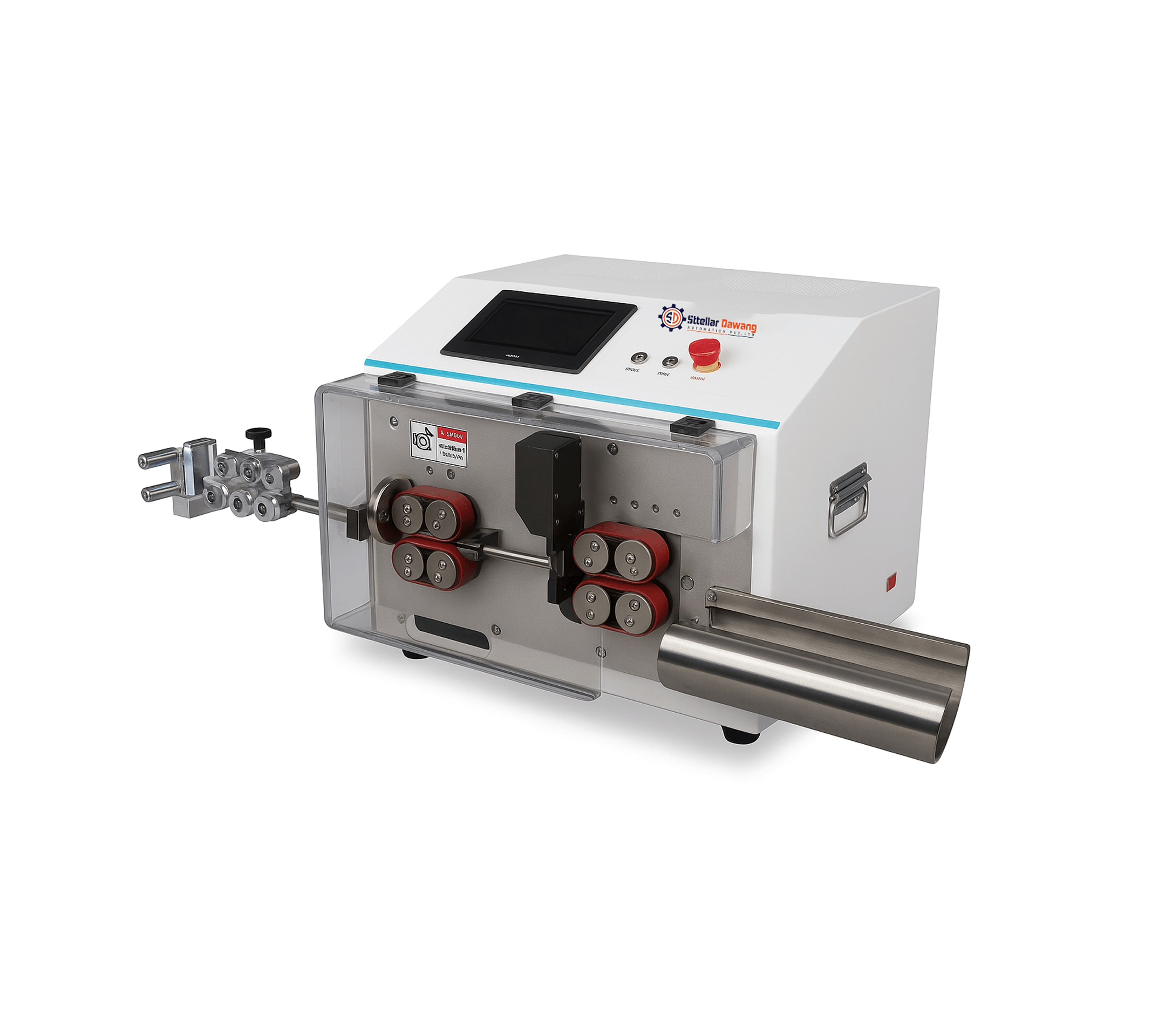

PrimeStrip-1600

Automatic Cable Cutting & Stripping Machines For cable sizes up to 16 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 16 sq.mm

Processes 0.5–16mm² wires with precise cutting, up to 15 intermediate strips, 4-wheel drive, roller feed, LCD control, and high-speed output.

  • High-capacity machine for 0.5–16 mm² wires, with cutting lengths up to 9999.9 mm and intermediate stripping (15 sections).

  • Delivers 1000–3000 pcs/h with precise ±(0.002 × L) mm accuracy.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Wide Wire Capacity

Wide Wire Capacity

Processes 0.5–16 mm² wires with ease.

Ultra-Precise Accuracy

Ultra-Precise Accuracy

±(0.002 × L) mm for consistent results.

Flexible Stripping Options

Flexible Stripping Options

Cutting lengths up to 9999.9 mm with 15-section intermediate stripping.

High-Speed Output

High-Speed Output

Delivers 1000–3000 pcs/hour for maximum productivity.

Technical Specifications

  • Model

    PrimeStrip-1600

  • Wire Cross Section

    0.5 – 16 mm²

  • Wire Feed Method

    Roller Feeding

  • Electrical Connection

    110V / 220V, 50Hz / 60Hz

  • Power

    300 W

  • Operation Interface

    4.3-inch English switching touch screen display

  • Machine Dimensions (L × W × H)

    460 × 470 × 325 mm

  • Weight

    52 kg

  • Wire Length Range

    1 – 9999 mm

  • Strip Length

    Front End: 0 – 30 mm; Rear end: 0 – 15 mm

  • Length Accuracy

    ±(0.002 × L) mm

  • Intermediate Peeling Capability

    Up to 16 times

  • Maximum Conduit Inside Diameter

    Φ6 – 14 mm

  • Compatible Wire Materials

    PVC, Teflon, Braided, Fiberglass

  • Blade Material

    Hard tungsten steel

  • Transport Speed (100 mm wire)

    (For L = 100 mm) 2000 – 2500 /hour

  • Drive Mode

    Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
