Cutting Stripping Machines

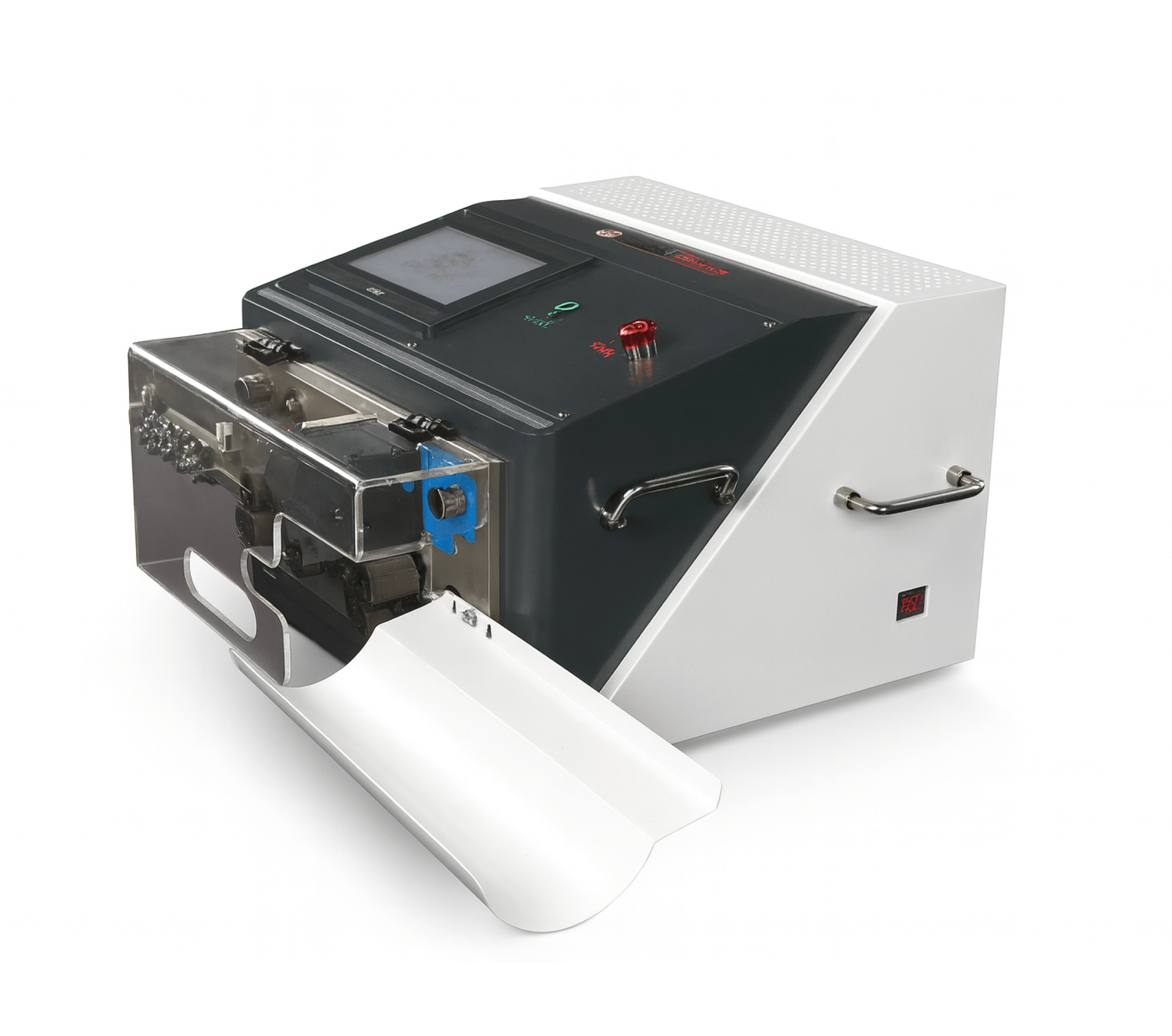

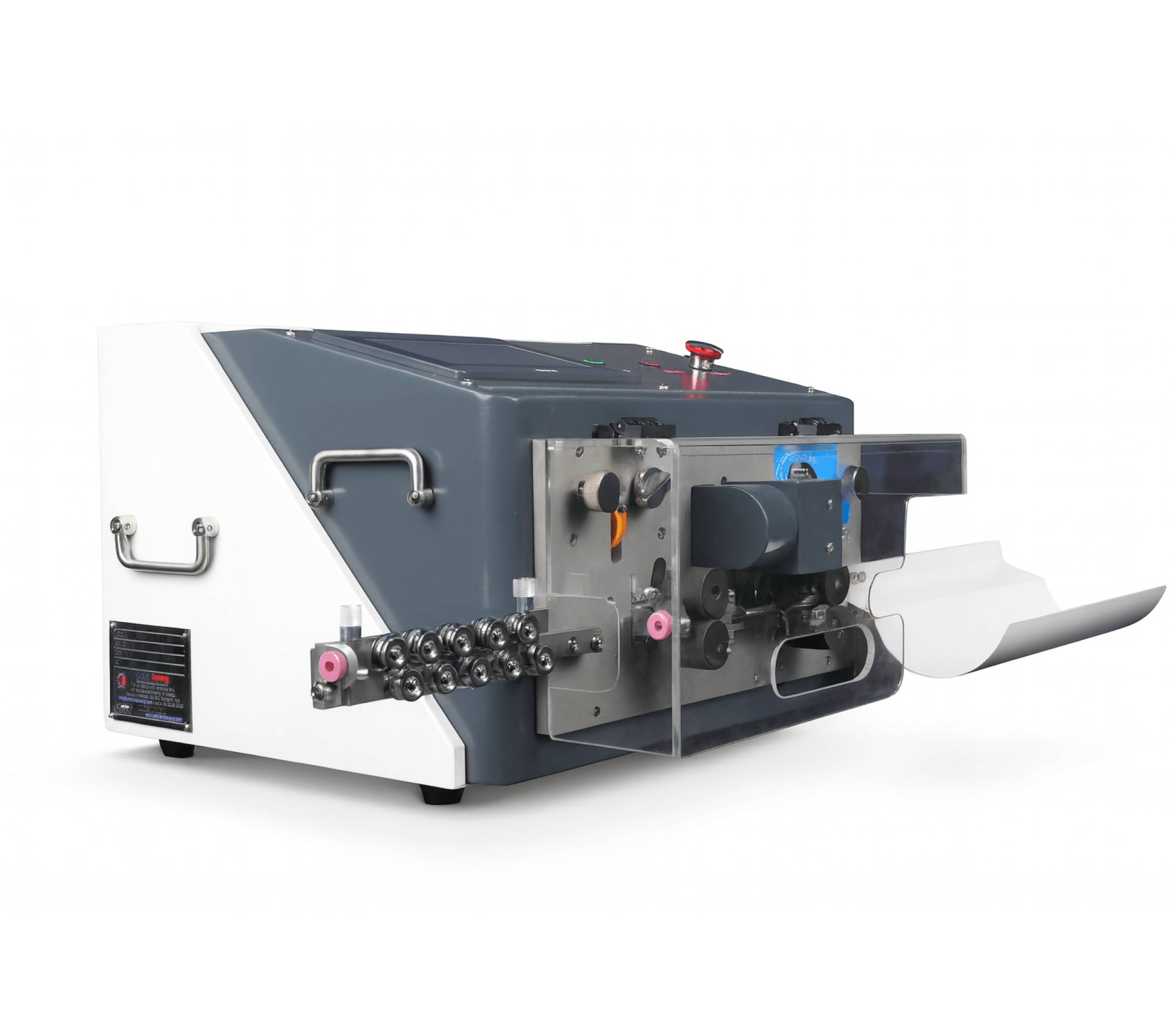

PrimeStrip-1000

Automatic Cable Cutting & Stripping Machines For cable sizes up to 10 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 10 sq.mm

Fully automatic, handles 0.5–10mm² wires, supports double-end and intermediate stripping, touchscreen control, durable tungsten blades, precise and efficient.

  • Fully automatic machine for 0.5–10mm² wires with precise cutting, double-end and intermediate stripping.

  • Equipped with touchscreen control, durable blades, and a fast, compact, versatile design.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Fully Automatic Operation

Fully Automatic Operation

Streamlined processing for efficiency.

Precise Cutting & Stripping

Precise Cutting & Stripping

Handles 0.5–10mm² wires with accuracy.

Touchscreen Control

Touchscreen Control

Easy, user-friendly setup and adjustments.

Durable, Fast & Compact

Durable, Fast & Compact

Strong blades with a versatile, space-saving design.

Technical Specifications

  • Model

    PrimeStrip-1000

  • Wire Cross Section

    0.5 – 10 mm²

  • Electrical Connection

    110V / 220V, 50Hz / 60Hz

  • Power

    300 W

  • Operation Interface

    4.3-inch Touch Screen Display

  • Machine Dimensions (L × W × H)

    460 × 470 × 325 mm

  • Weight

    52 kg

  • Wire Length Range

    1 – 9999 mm

  • Strip Length

    Front End: 0 – 30 mm; Rear end: 0 – 15 mm

  • Length Accuracy

    ±(0.002 × L) mm

  • Intermediate Peeling Capability

    Up to 16 times

  • Maximum Conduit Inside Diameter

    8 mm

  • Compatible Wire Materials

    PVC, Teflon, Braided, Fiberglass

  • Blade Material

    Hard tungsten steel

  • Transport Speed (100 mm wire)

    4000 – 5000 pieces/hour

  • Drive Mode

    Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
