Cutting Stripping Machines

DuraStrip-350 Plus

Automatic Cable Cutting & Stripping Machines For cable sizes up to 35 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 35 sq.mm

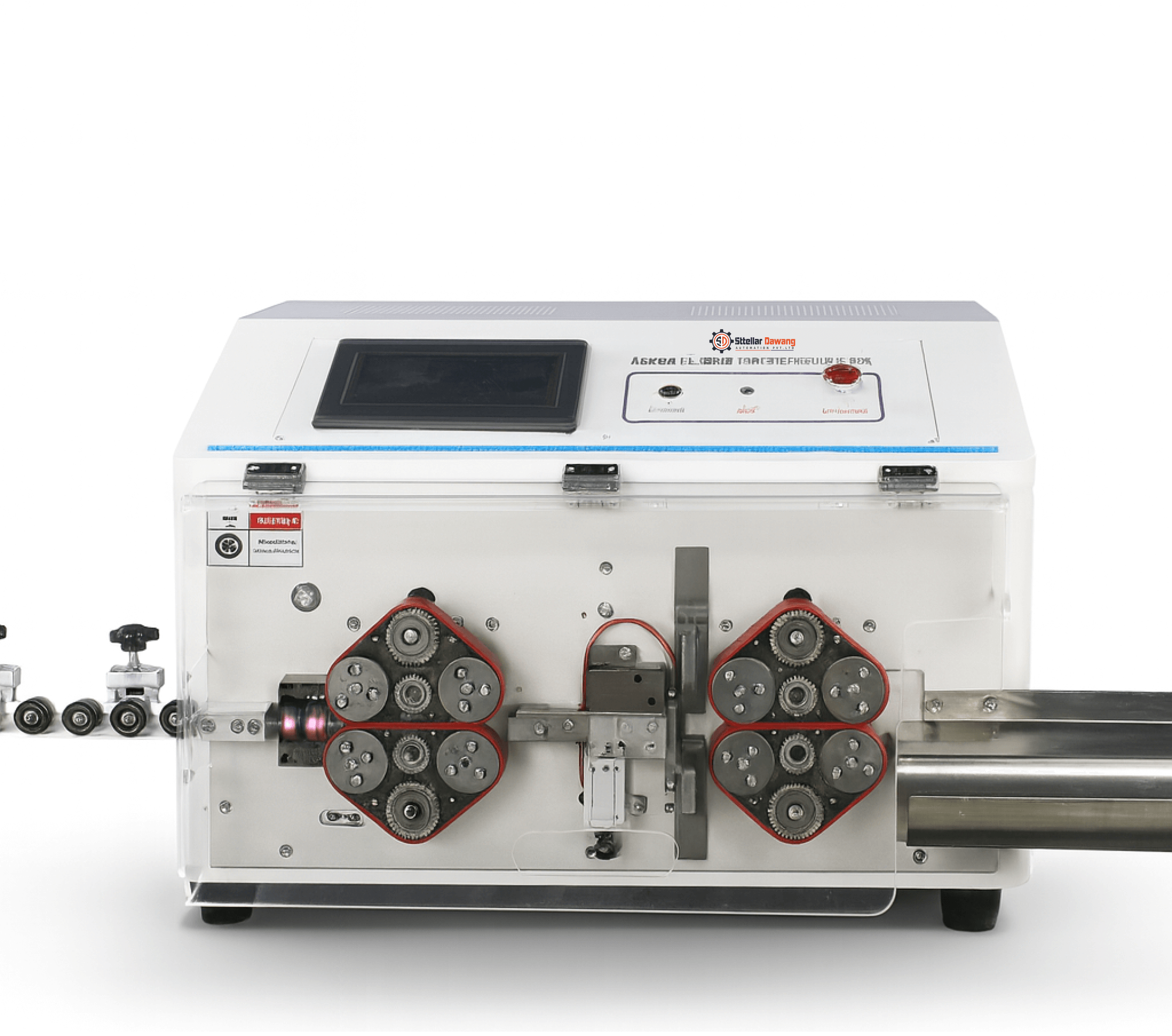

The SD-35MC is a fully automatic machine designed for cutting and stripping both the jacket and inner cores of multi-core sheathed cables. It supports processing cables with up to 7 cores, making it ideal for applications requiring high precision and efficiency

  • Supports heavy-duty cables with scratch-free feeding and advanced positioning.

  • Offers multiple optional accessories to enhance productivity.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Heavy-Duty Cable Support

Heavy-Duty Cable Support

Built to handle large and robust cables.

Scratch-Free Feeding

Scratch-Free Feeding

Ensures smooth, damage-free processing.

Advanced Positioning System

Advanced Positioning System

Delivers precise and consistent results.

Optional Accessories

Optional Accessories

Expandable features for greater productivity.

Technical Specifications

  • Model

    CS-35 Plus

  • Available Wire

    Outer Inner Stripping

  • Max Supported Cores

    7 cores

  • Conductor Cross-Section *

    1-35mm²

  • Cutting Length

    1-99999mm

  • Cutting Length Tolerances

    ≤(0.002 × L) mm

  • Jacket Stripping Length *

    Head: 10-120mm; Tail: 10-80mm

  • Inner Core Stripping Length *

    Head: 1-50mm; Tail: 1-50mm

  • Conduit Diameter *

    Φ16mm

  • Production Rate

    One core wire: 2300 pcs/h; Multi-core: 800 pcs/h

  • Display Screen

    7-inch touch screen

  • Wire Feed Method

    Belt feeding

  • Drive Method

    16-wheel drive

  • Power Supply

    220V / 110V

  • Power

    1200W

  • Weight

    95kg

  • Dimensions

    60 × 50 × 62cm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
