Cutting Stripping Machines

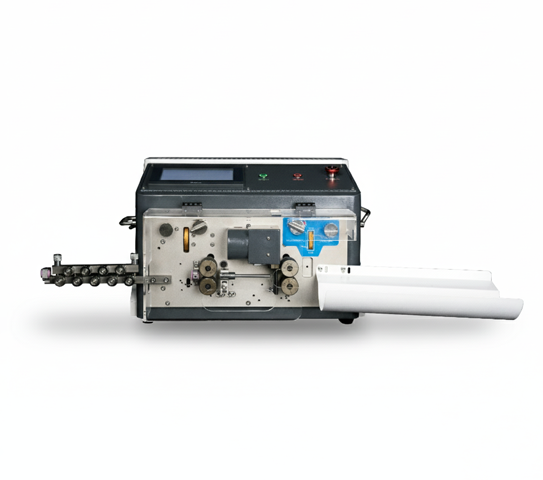

DuraStrip-2400

Automatic Cable Cutting & Stripping Machines For cable sizes up to 240 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 240 sq.mm

The SU Series machines provide full-automatic cutting and stripping for large-size cables, ideal for automotive power cables, battery box cables, new energy vehicle harnesses, and high-power applications.

  • Handles cables up to 240 mm² with long stripping lengths and high precision.

  • Equipped with 32-wheel drive and belt feeding for smooth, scratch-free processing.7-inch touch screen control with optional feeders, stackers, or coilers for automation.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Large Cable Capacity

Large Cable Capacity

Handles cables up to 240 mm² with long stripping lengths.

High-Precision Processing

High-Precision Processing

Delivers accurate, consistent stripping results.

32-Wheel Drive with Belt Feeding

32-Wheel Drive with Belt Feeding

Smooth, stable, and scratch-free operation.

7-Inch Touchscreen with Automation Options

7-Inch Touchscreen with Automation Options

Supports feeders, stackers, and coilers for enhanced productivity

Technical Specifications

  • Model

    DuraStrip-2400

  • Available Wire Size

    AWG2 – 240 mm²

  • Conductor Cross-Section

    30 – 240 mm²

  • Cutting Length

    10 – 99999.99 mm

  • Cutting Length Tolerance

    ≤(0.002×L) mm

  • Stripping Length*

    Head 1-1000mm; Tail 1-300mm

  • Conduit Diameter*

    Φ15 – 35 mm

  • Production Rate

    200 – 800 pcs/h

  • Display Screen

    7-inch touch screen

  • Wire Feed Method

    Belt feeding

  • Drive Method

    32 wheels drive

  • Power Supply

    220V/110V

  • Power

    11700 W

  • Weight

    450 kg

  • Dimensions

    210 × 90 × 145 cm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
