Cutting Stripping Machines

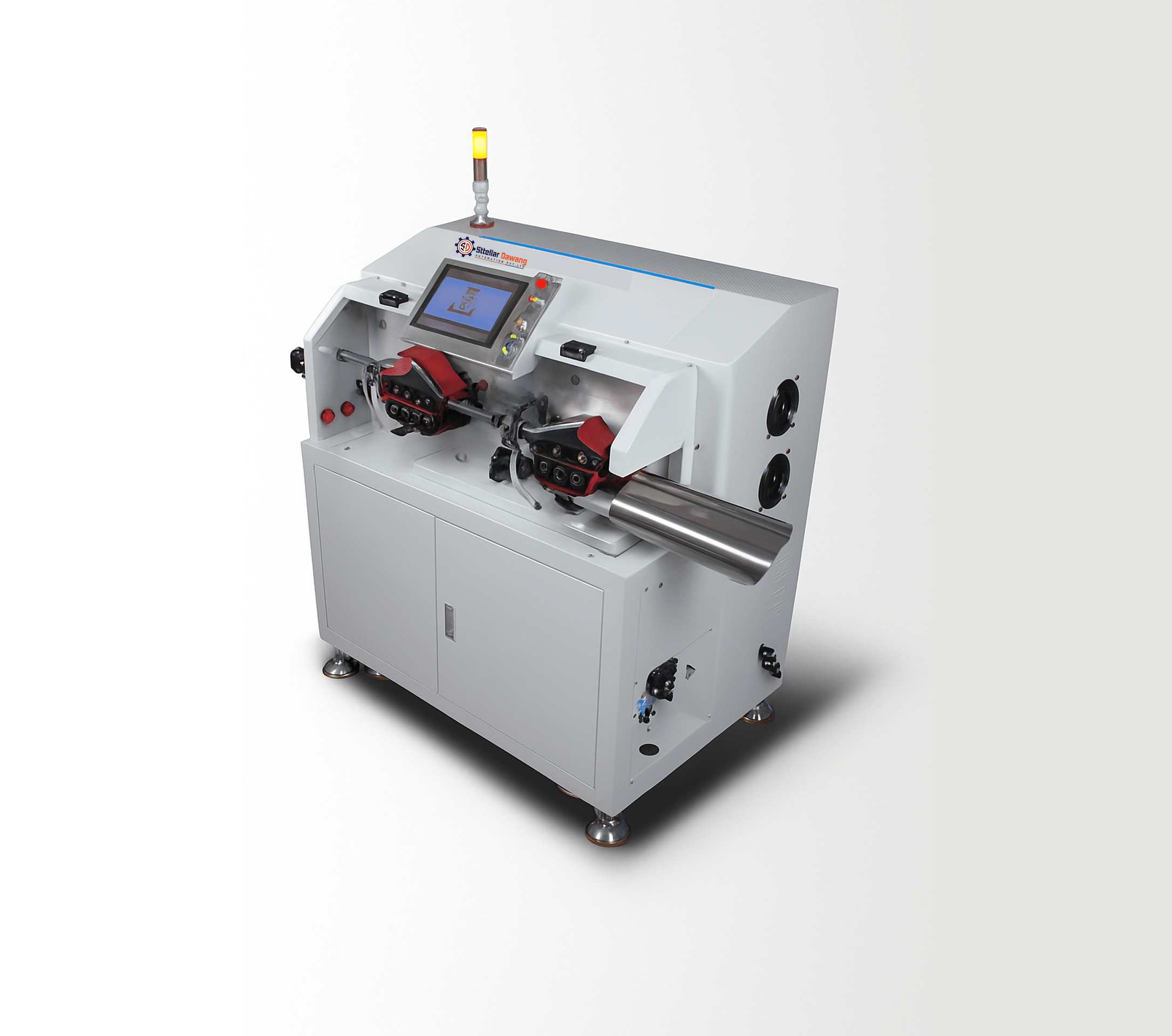

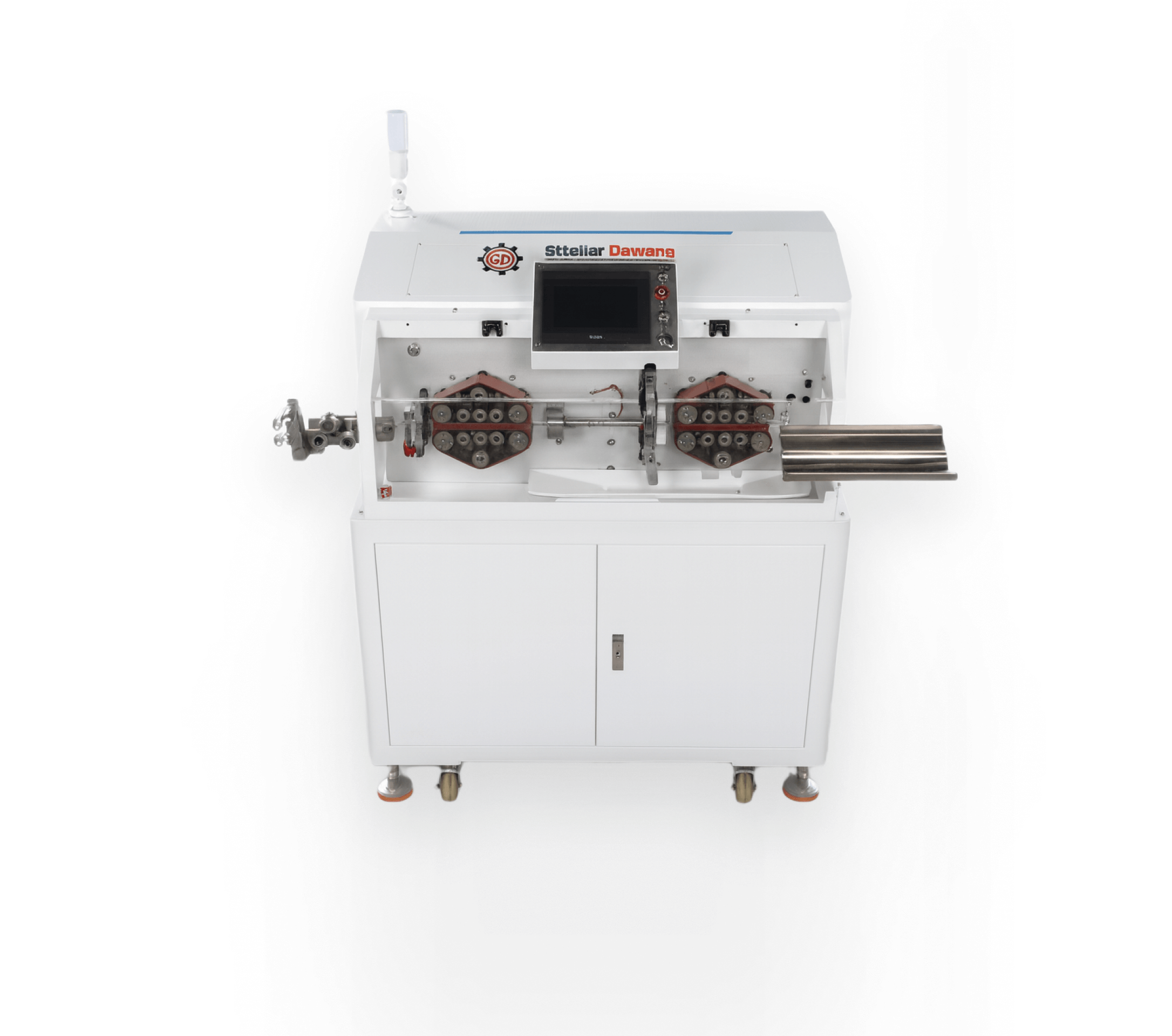

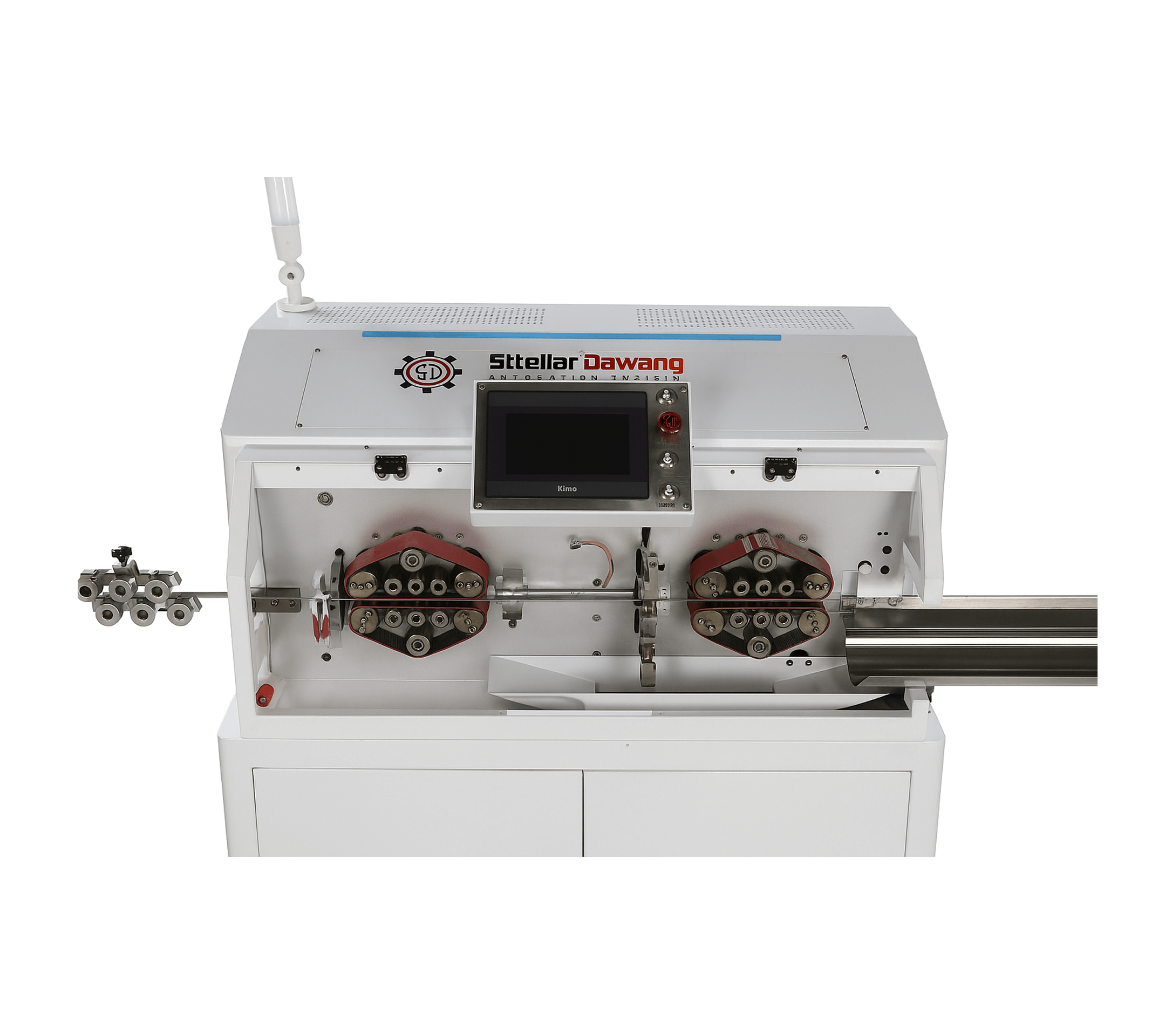

DuraStrip-1200

Automatic Cable Cutting & Stripping Machines For cable sizes up to 120 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 120 sq.mm

Full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness

  • Processes up to 120 mm² cables, long stripping length

  • Belt feeding, high precision, energy-efficient, touchscreen control, ideal for automotive, EV, and high-temp wires.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Technical Specifications

  • Model

    DuraStrip-1200

  • Available Wire Size

    AWG7 – 120mm²

  • Conductor Cross-Section

    10-120mm²

  • Cutting Length

    1-99999.99mm

  • Cutting Length Tolerances

    ≤(0.002×L) mm

  • Stripping Length*

    Head 1-800mm; Tail 1-400mm

  • Production Rate

    1000-1800 pcs/h

  • Display Screen

    7-inch touch screen

  • Wire Feed Method

    Belt feeding

  • Drive Method

    32 wheels drive

  • Power Supply

    220V/110V

  • Power

    2000W

  • Weight

    220kg

  • Dimensions

    102×61×115cm

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
