Cutting Stripping Machines

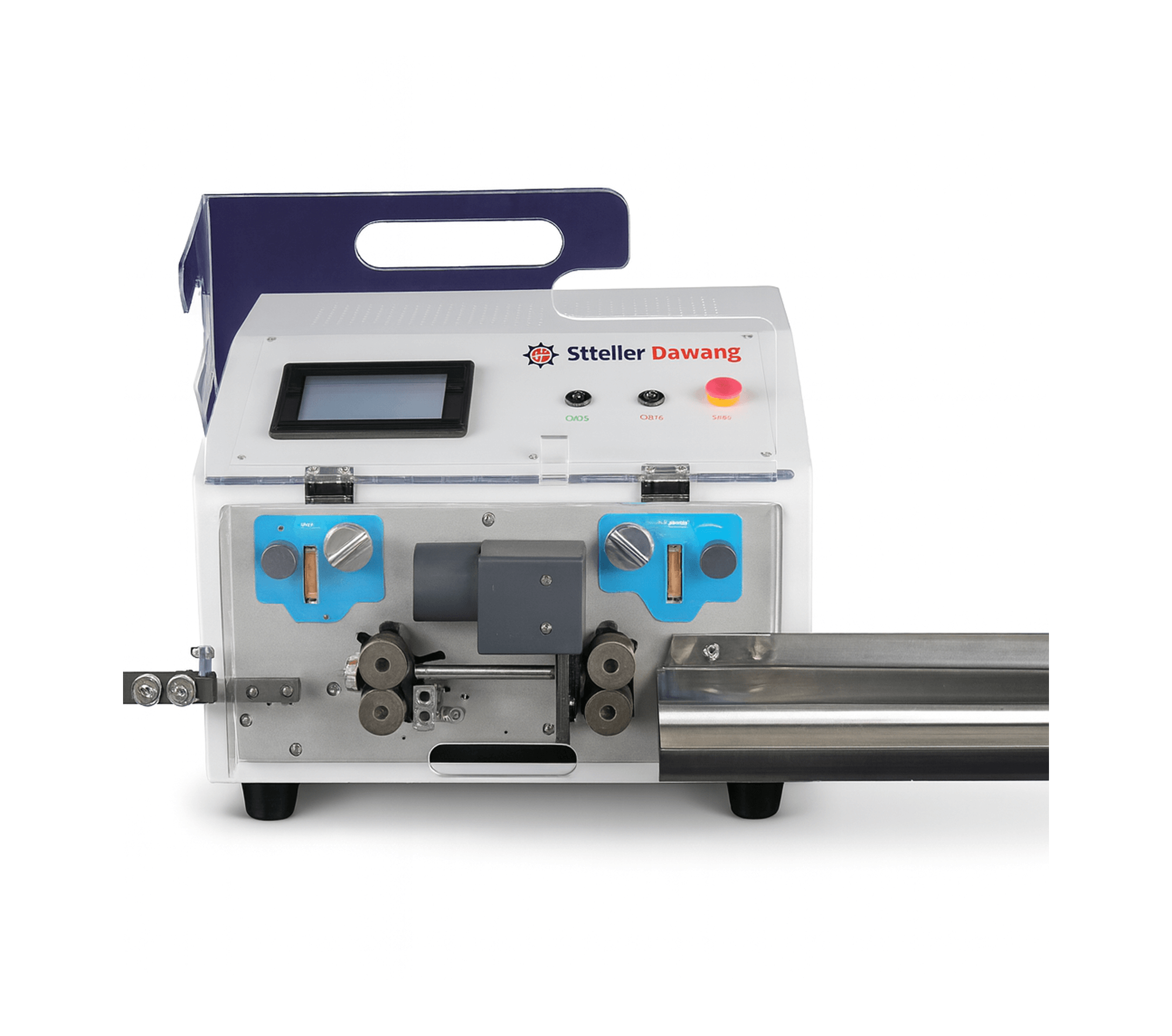

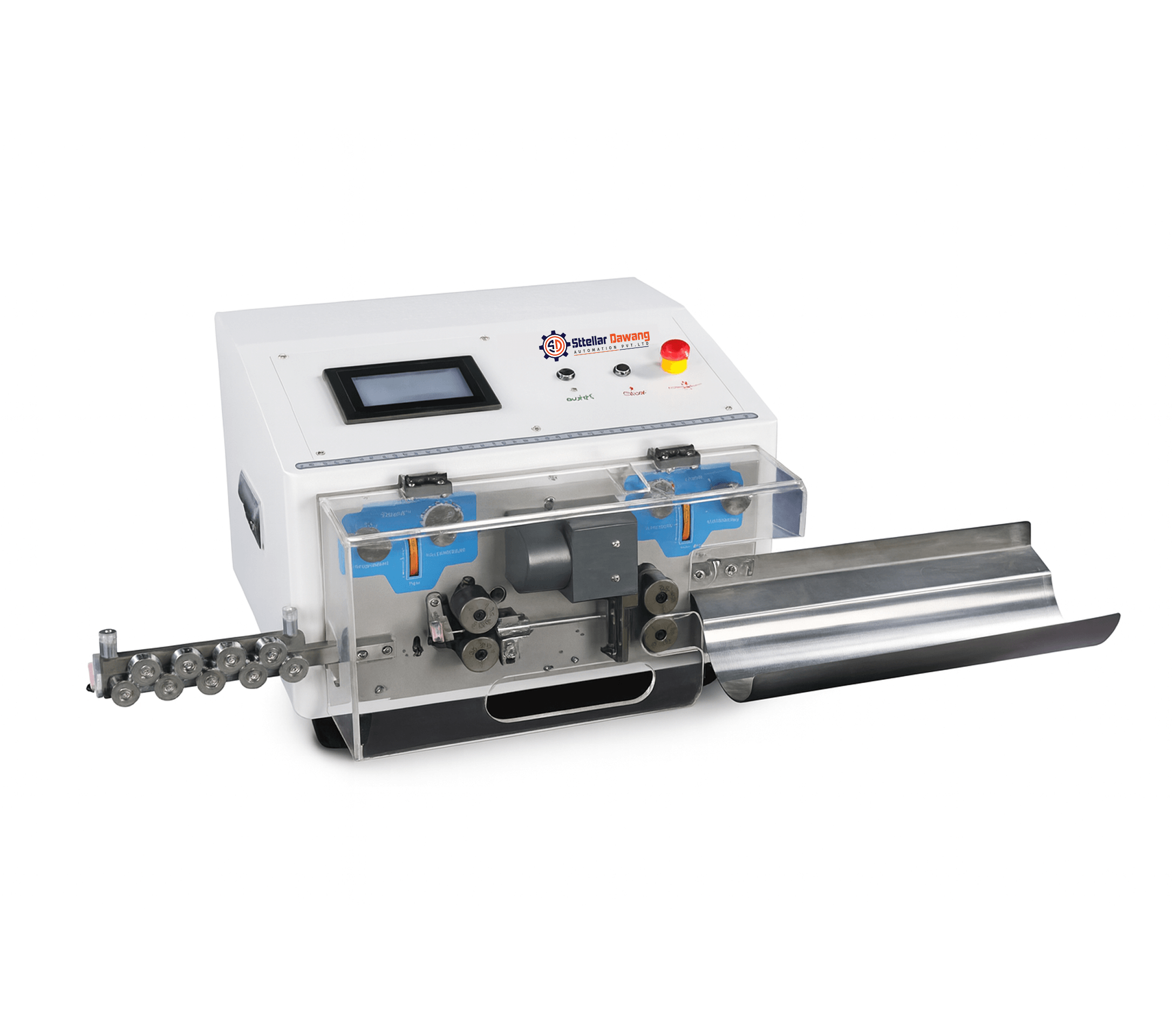

CS-6H

Automatic Cable Cutting & Stripping Machines For cable sizes up to 6 sq.mm

Automatic Cable Cutting & Stripping Machines For cable sizes up to 6 sq.mm

Process 1–6mm² wires, fully automatic, boosts speed, saves labor, ideal for wire harnesses in automotive, appliances, and instrumentation.

  • Fully automated, intelligent control, supports PVC, Teflon, silicone, and glass fiber cables.

  • Easy English display, low maintenance, optional device connections, boosts speed, and saves labor.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Fully Automated with Intelligent Control

Fully Automated with Intelligent Control

Streamlined operation for maximum efficiency.

Wide Cable Compatibility

Wide Cable Compatibility

Supports PVC, Teflon, silicone, and glass fiber cables.

Easy English Display

Easy English Display

User-friendly interface with low maintenance.

Boosts Speed & Saves Labor

Boosts Speed & Saves Labor

Optional device connections for higher productivity.

Technical Specifications

  • Model

    CS-6H

  • Wire Cross Section

    0.2 – 6.0 mm²

  • Electrical Connection

    110V / 220V, 50Hz / 60Hz

  • Power

    300 W

  • Operation Interface

    4.3/6 inch C Touch screen display

  • Machine Dimension

    460 × 470 × 325 mm

  • Wire Length Range

    1 – 9999 mm

  • Strip Length

    Front end: 0 – 30 mm; Rear end: 0 – 8 mm

  • Length Accuracy

    ±(0.002 × L) mm

  • Intermediate Peeling Times

    16 times

  • Max Conduit Inside Diameter

    6 mm

  • Wire Material

    PVC, Teflon, Braided, Fiberglass wire

  • Blade Material

    Hard tungsten steel

  • Transport Speed

    (L = 100 mm) 4000 – 5000 pieces/hour

  • Driving Mode

    Four-wheel drive (silent hybrid stepper motor, 0.1 mm forward per step)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
