Quiet Operation
Smooth, low-noise performance.
Crimping Machines

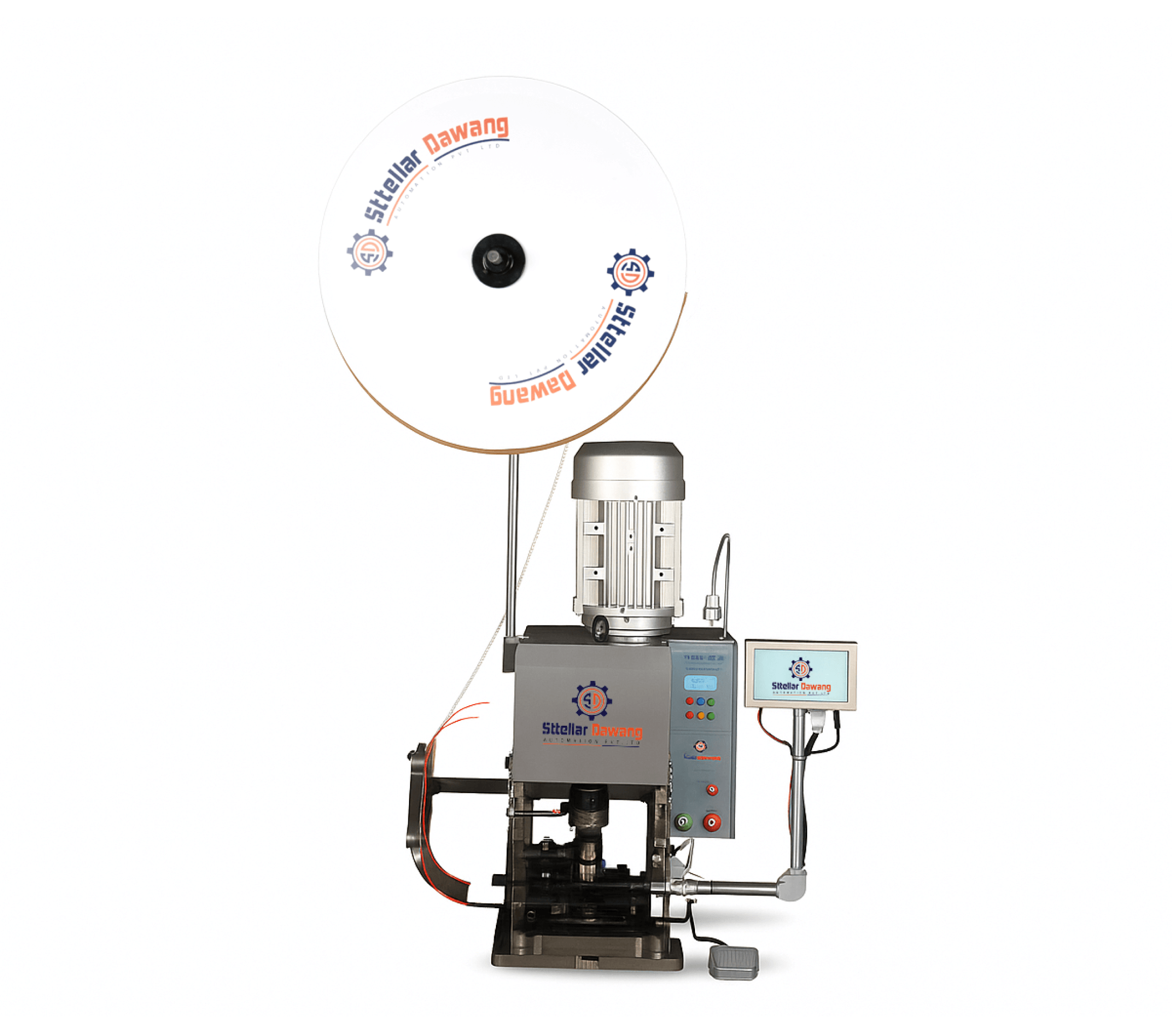

PowerCrimp-6000
6 Ton Crimping Machine
Semi-automatic, foot-operated machine for crimping reeled terminals. Microprocessor-controlled, durable steel construction, low maintenance, and user-friendly soft-touch control panel.
Quiet operation with a quick-change applicator and precision slow mode.
Provides three-speed options and a modular control box for easy maintenance.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Quick-Change Applicator
Fast and easy tool swaps.
Precision & Speed Control
Slow mode with three-speed options.
Modular Control Box
Simplifies servicing and maintenance.
Technical Specifications
Model
PowerCrimp-6000
Power Input
Single Phase 220 V AC 50 Hz
Motor (kW)
3
Control
Electronic
Tonnage (Ton)
6
Terminal Sheet Thickness (mm)
1.5
Wire Size (Sq. mm)
25
Stroke
40 mm
Shut Height
Std: 135.78 mm, Max: 190 mm
Weight
118 kg
Dimension (L × B × H) (mm)
400 × 400 × 800
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products
PowerCrimp-8000 Crimping Machines

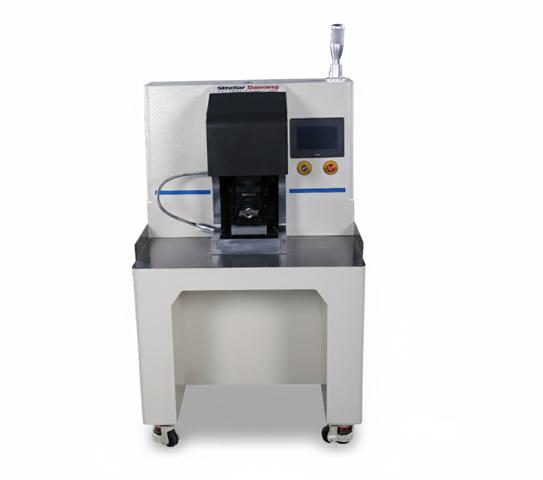

CM-15ST/20ST Crimping Machines
