SpiraMax-PE06

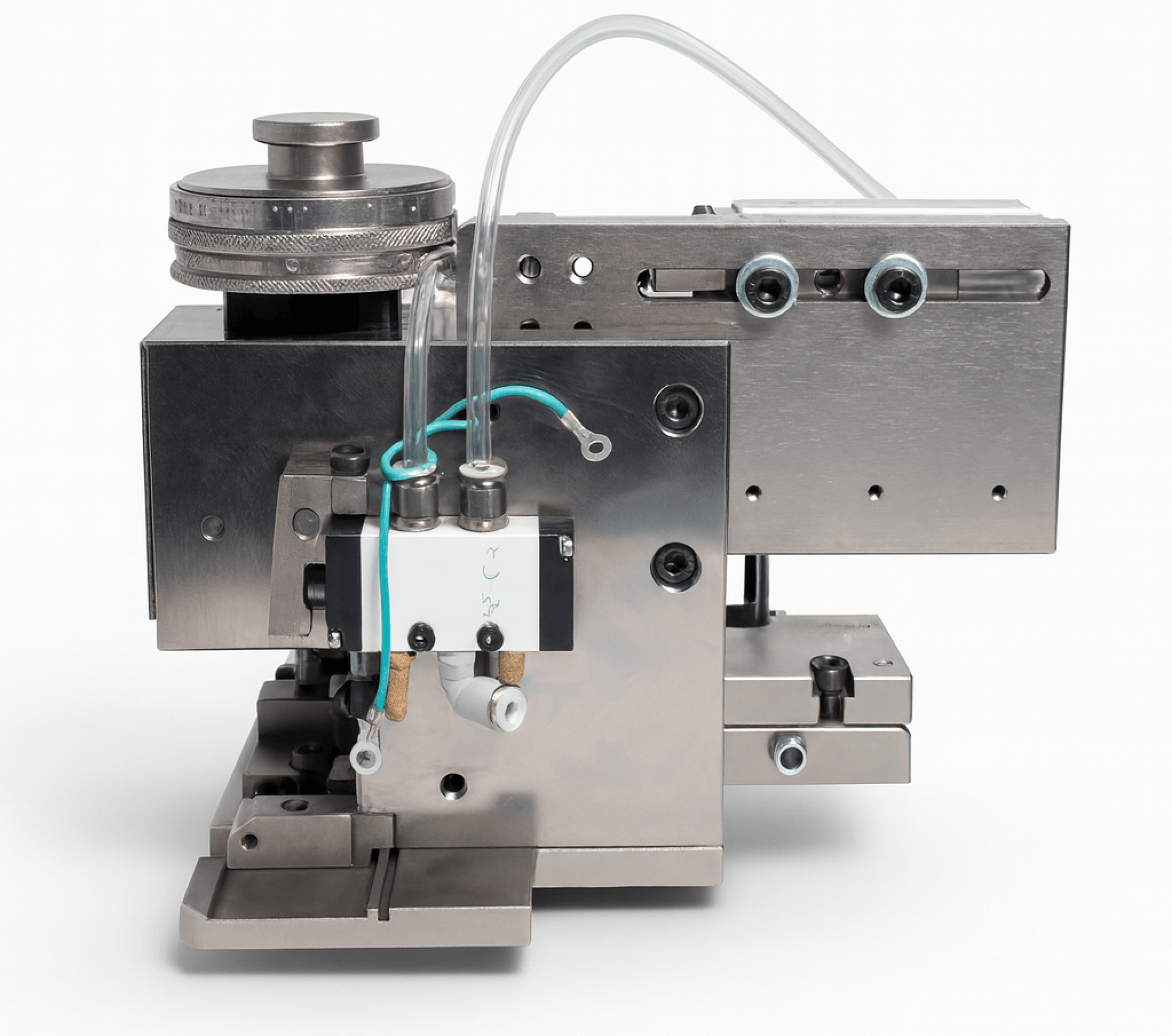

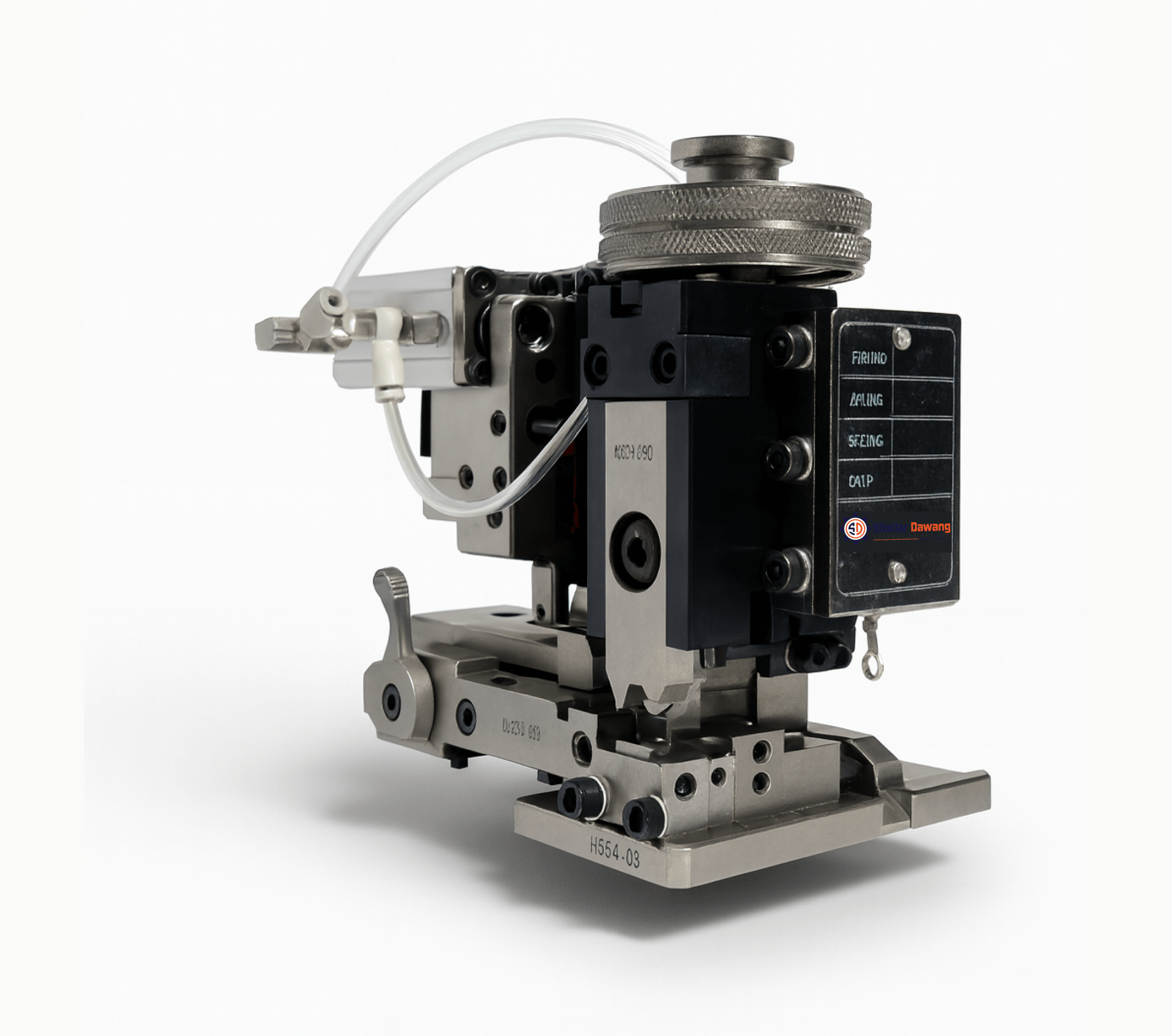

End Feed Terminal Special Pneumatic Feed Applicator (0.1 to 0.6 mm sheet thickness)

End Feed Terminal Special Pneumatic Feed Applicator (0.1 to 0.6 mm sheet thickness)

Special Pneumatic Feed Applicators for End terminals with quick-change 3-point base for precise, efficient production.

  • Pneumatic Feed Applicators feature a 3-point quick-change base and modular design for efficient setup.

  • They include split-type tooling and a durable coating for reliable, cost-effective terminal processing.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Efficient Setup

Efficient Setup

3-point quick-change base enables faster setup and reduced downtime.

Modular Design

Modular Design

Flexible modular structure supports customization and scalability.

Reliable Tooling

Reliable Tooling

Split-type tooling ensures precision, stability, and ease of use.

Cost-Effective

Cost-Effective

Durable coating increases longevity while minimizing maintenance costs.

Technical Specifications

  • Model

    SD-000-1

  • Compatibility/Shut height

    3-point Adaption/135.78mm

  • Minimum Load Increment

    20 Microns

  • Stroke

    40mm

  • Maximum terminal Length

    NA

  • Maximum Terminal Sheet thickness

    0.6 mm

  • Validation/Cross section Analysis

    Optional

  • Maximum terminal pitch

    30 mm

  • Non-Resettable Counter

    Optional

  • Feed

    Pneumatic

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
