High Precision
20µm crimp adjustment for accurate and reliable performance.
Applicators

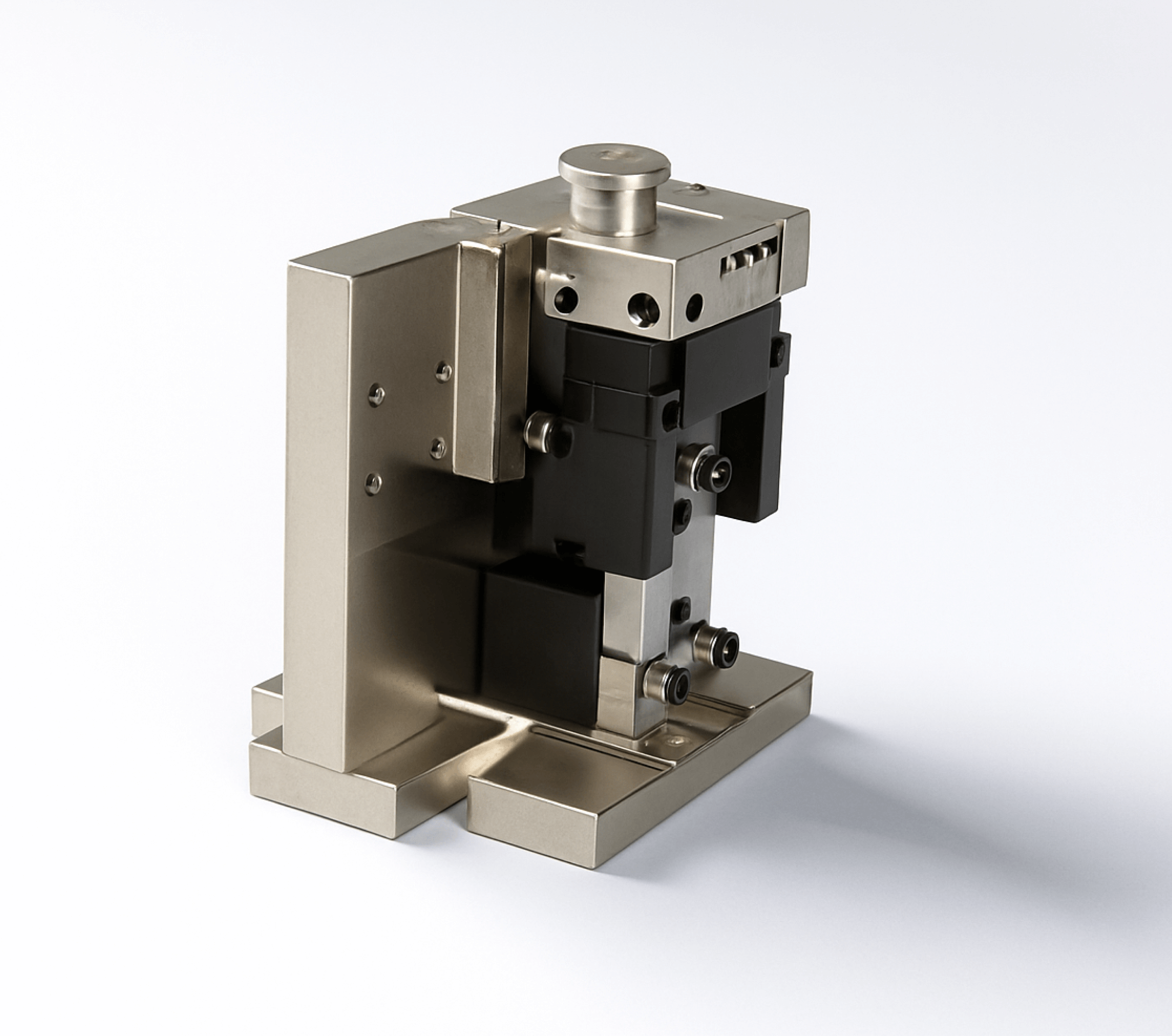

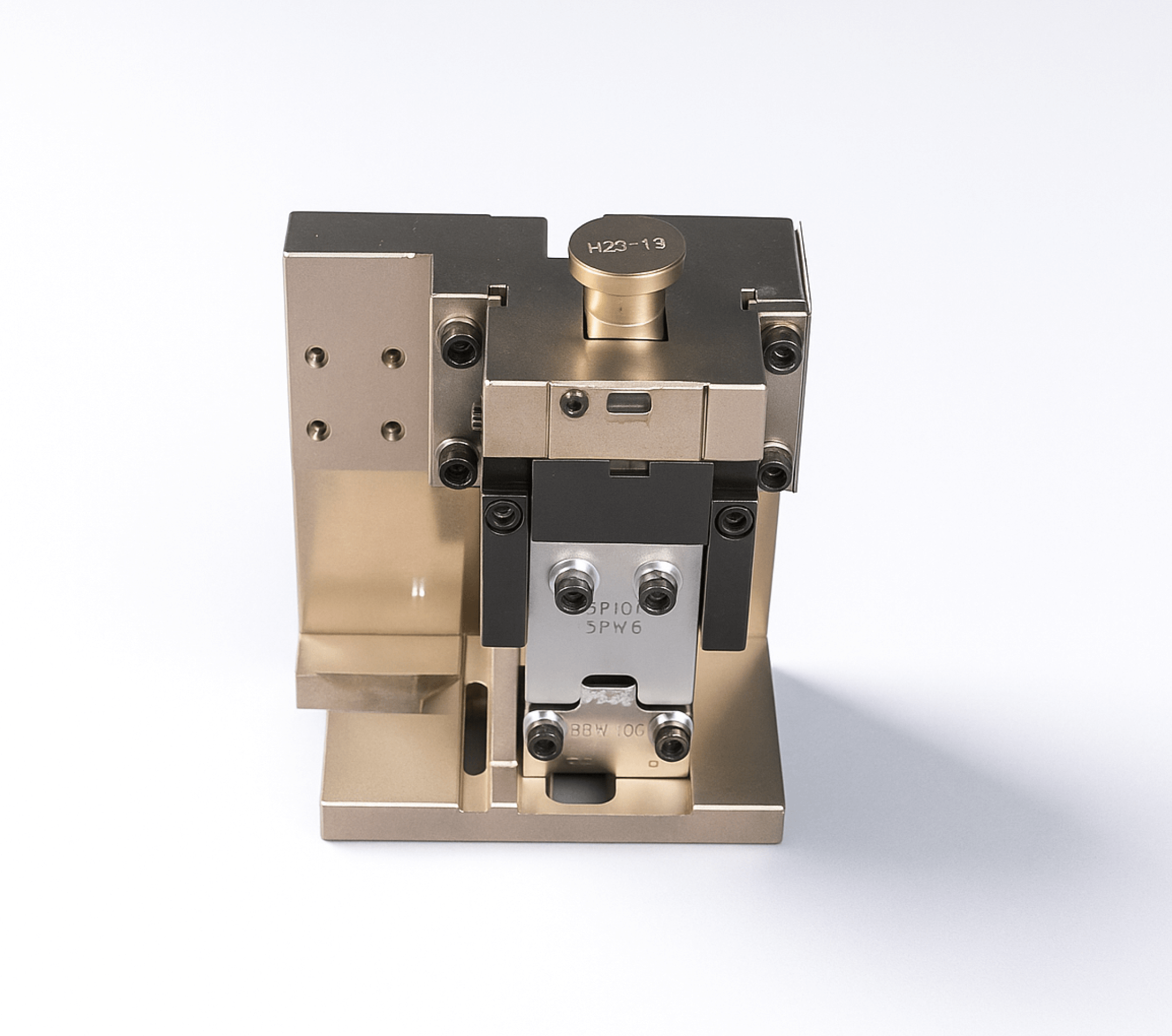

SpiraMax-L06
Loose Spiral Dial Type Applicator (0.1 to 0.1.5 mm sheet thickness)
Loose Spiral Dial Applicators for semi-automatic presses – 20µm crimp adjustment, high precision, flexible, and easy to use.
Loose Spiral Dial Applicators feature 20µm crimp adjustment, a quick-change base, and flexible terminal support.
Designed for user-friendly operation with an economical, low-maintenance build for long-term efficiency.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Easy Changeover
Quick-change base allows faster setup and smooth operations.
Flexible Support
Provides compatibility with a wide range of terminals.
Cost-Effective
User-friendly, economical, and low-maintenance design for long-term use.
Technical Specifications
Model
SpiraMax-L06
Compatibility/Shut height
3-point Adaption/135.78mm
Minimum Load Increment
20 Microns
Stroke
30/40mm
Maximum terminal Length
NA
Maximum Terminal Sheet thickness
1.5 mm
Validation/Cross section Analysis
Optional
Maximum terminal pitch
NA
Non-Resettable Counter
Optional
Feed
Manual
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
