High Precision
20µm crimp adjustment with stable anvil for consistent performance.
Applicators

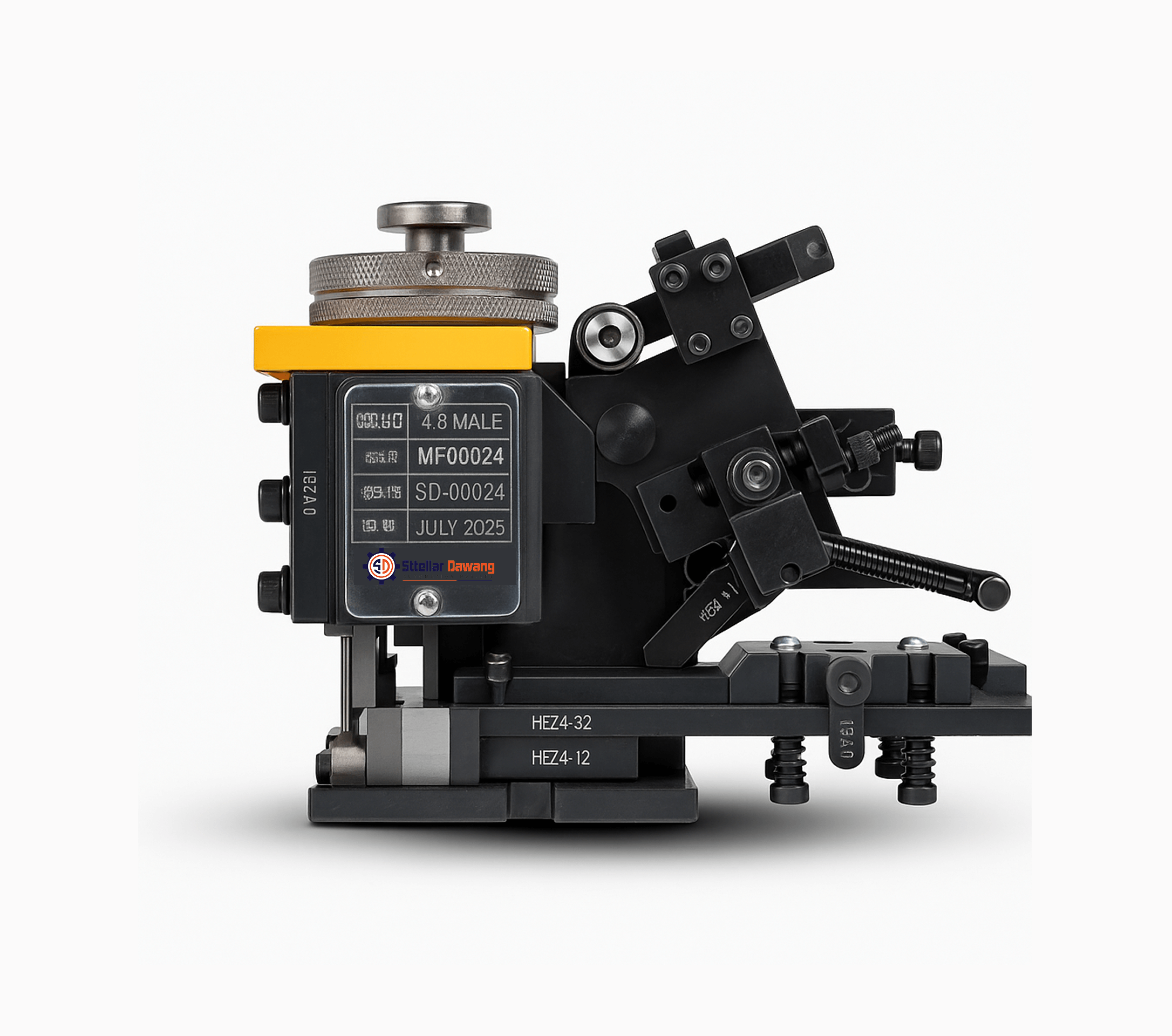

SpiraMax-E06
End Feed Spiral Dial Type Applicator (0.1 to 0.6 mm sheet thickness)
End Feed Spiral Dial Applicators with 20µm crimp adjustment, anti-bending clenching, quick-change base, modular design, stable anvil, split tooling, easy refurbishment, and optional long-life plating.
End Feed Spiral Dial Applicators feature 20µm crimp adjustment, anti-bending clenching, stable anvil, and optional long-life plating.
Designed with a quick-change base, modular design, split tooling, and easy refurbishment for long-term efficiency.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Reliable Design
Anti-bending clenching ensures durability and accuracy.
Efficient Setup
Quick-change base and modular construction for faster changeovers
Cost-Effective
Split tooling, easy refurbishment, and optional long-life plating reduce maintenance
Technical Specifications
Model
Universal Design
Compatibility/Shut height
3-point Adaption/135.78mm
Minimum Load Increment
20 Microns
Stroke
30/40mm
Maximum terminal Length
26mm
Maximum Terminal Sheet thickness
1.0 mm
Validation/Cross section Analysis
Included
Maximum terminal pitch
28mm
Non-Resettable Counter
Optional
Feed
Mechanical
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
