High Precision
20µm crimp adjustment delivers accurate and consistent performance.
Applicators
CrimpPlug-3Pin

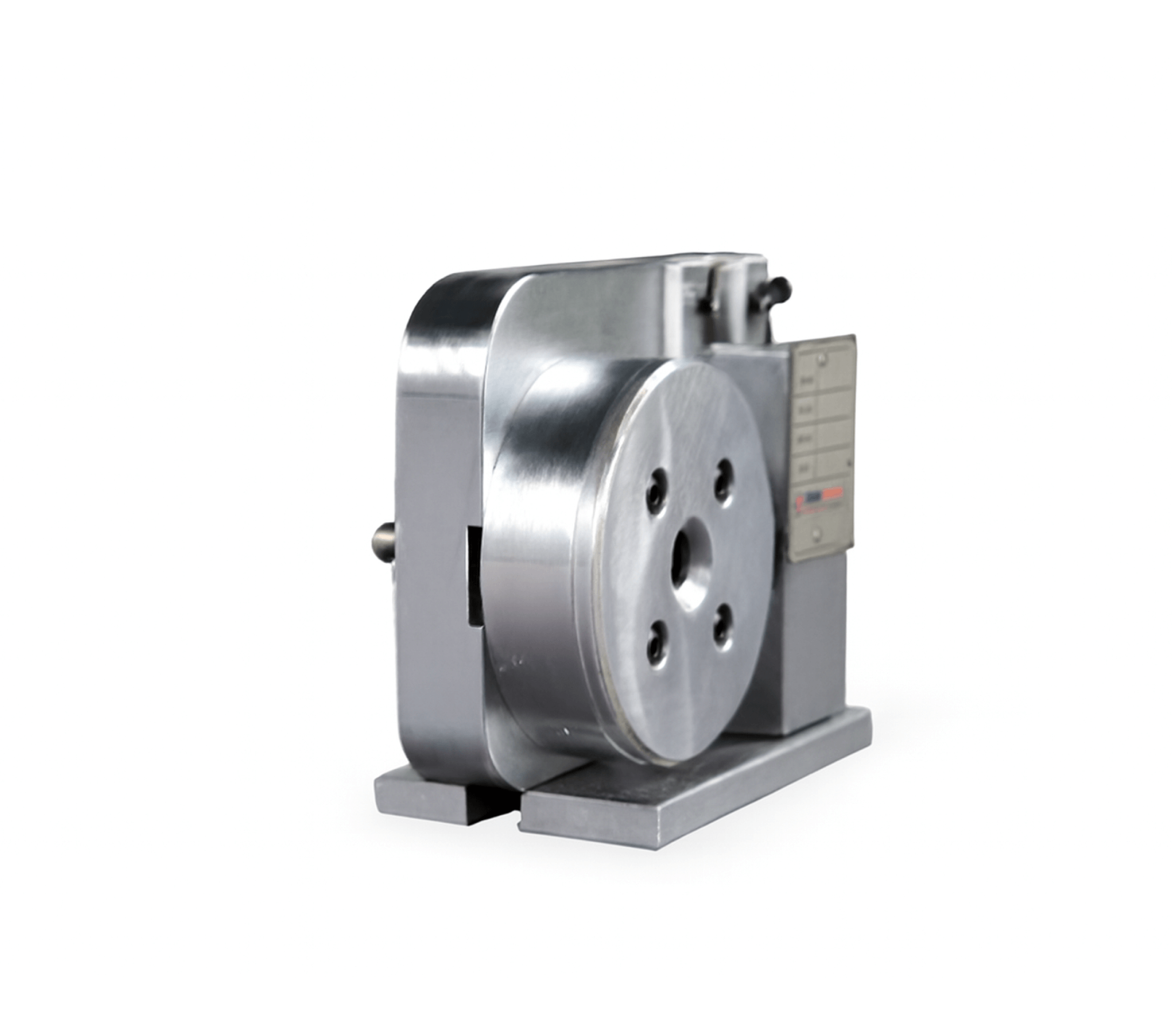

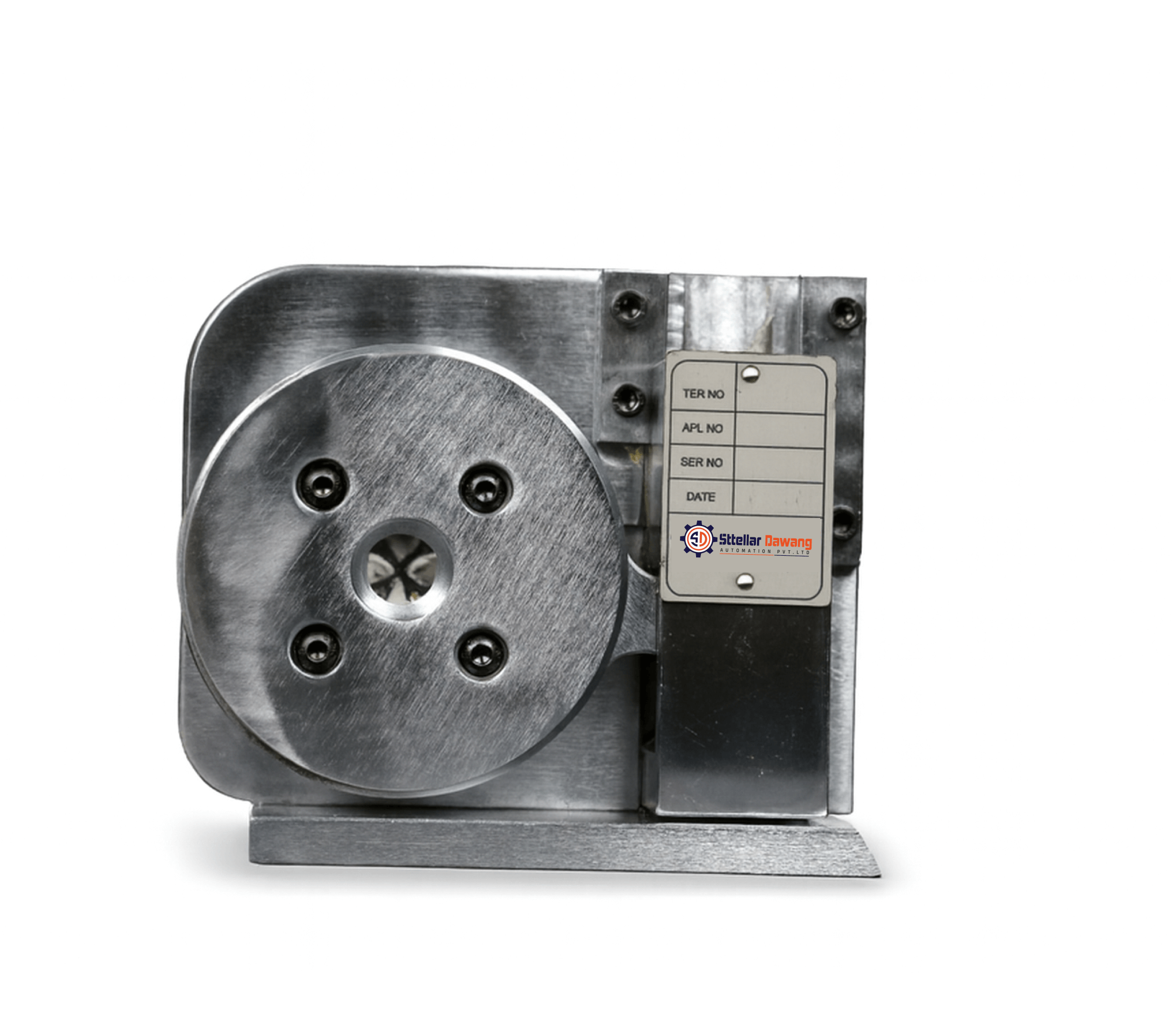

Four Indent Edge Applicator (0.1 to 2 mm sheet thickness)
Four Indent Edge Applicators for 160 mm semi-automatic presses – 20µm crimp height adjustment for precise, quick setup without removal.
Four Indent Edge Applicators are designed for 160 mm presses with 20µm crimp adjustment.
They support terminals up to 2 mm, ensuring efficient setup and reliable use in railway and aerospace industries.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Terminal Support
Handles terminals up to 2 mm, suitable for demanding applications.
Efficient Setup
Designed for quick, streamlined setup to maximize productivity.
Industry Reliability
Proven durable performance for railway and aerospace environments.
Technical Specifications
Model
CrimpPlug-3Pin
Compatibility/Shut height
160 mm
Minimum Load Increment
NA
Stroke
40mm
Maximum terminal Length
50 mm
Maximum Terminal Sheet thickness
2 mm
Validation/Cross section Analysis
Optional
Maximum terminal pitch
NA
Non-Resettable Counter
NA
Feed
Loose
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
