Heavy-Duty Support
Handles large loose terminals up to 3 mm and 95 sqmm with ease.
Applicators
CrimpPiller-20

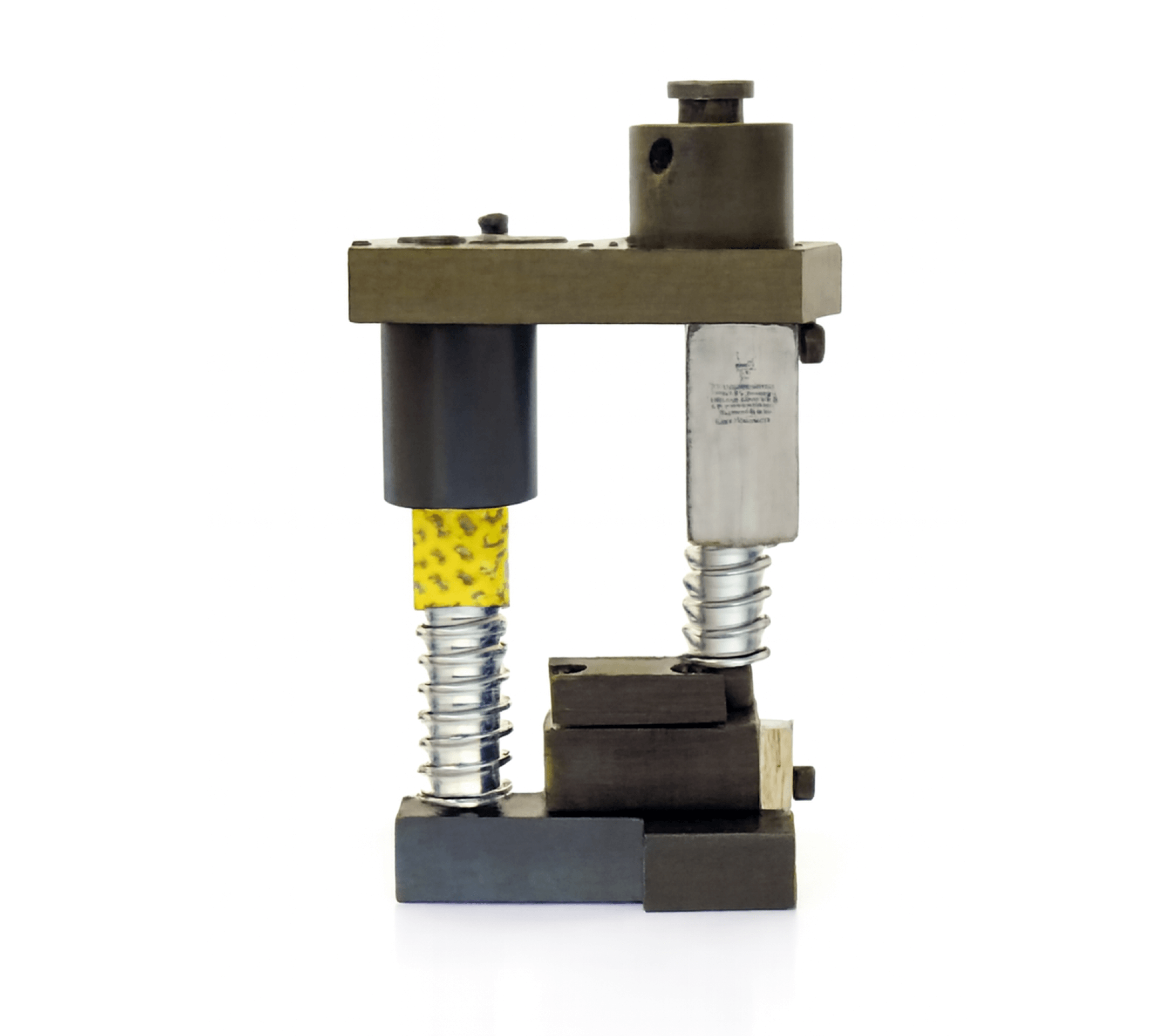

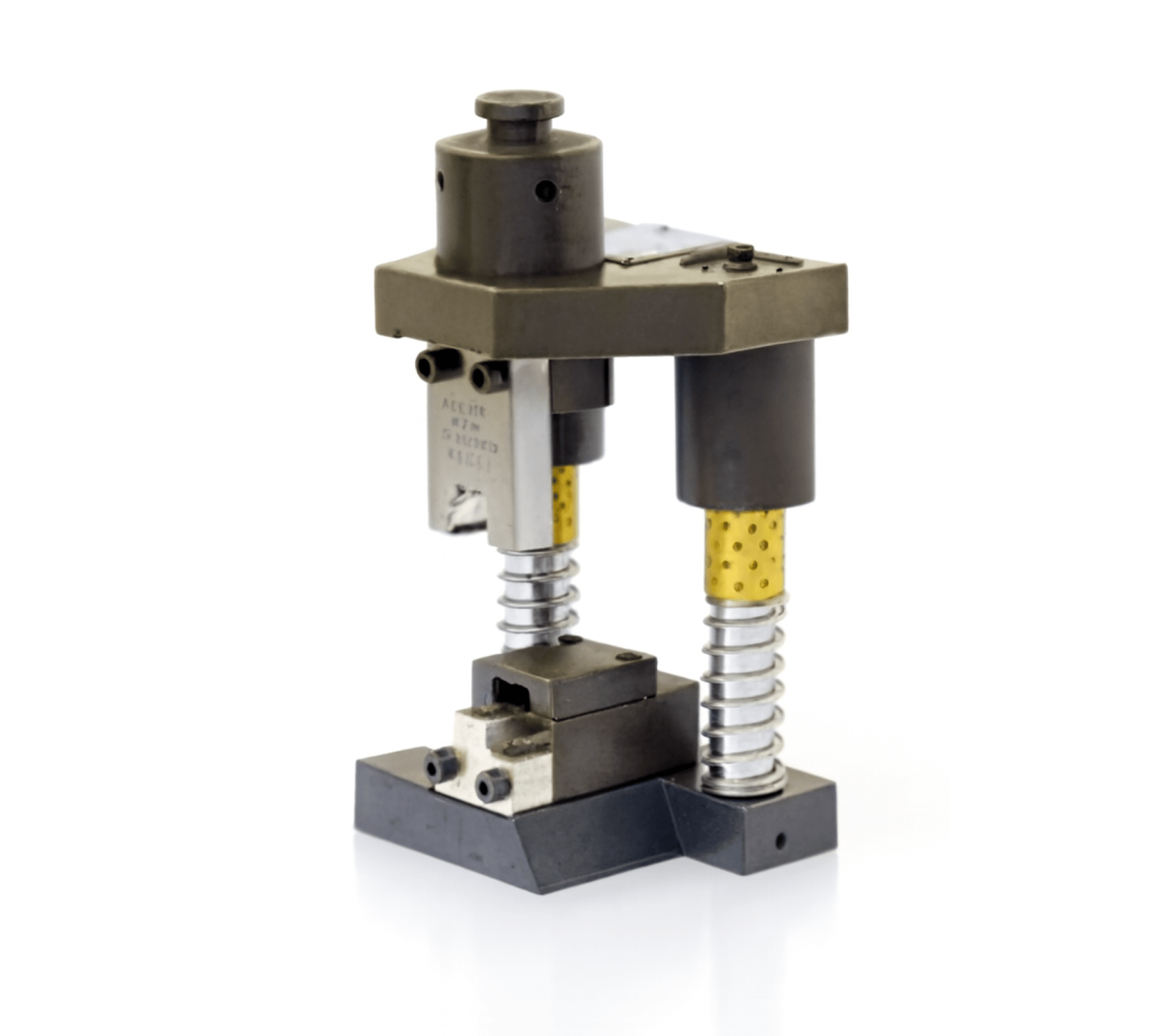

Pillar Set Crimping Applicator (0.1 to 2 mm sheet thickness)
Pillar Set Crimping Applicator for large loose terminals (up to 3 mm thick, 95 mm² wire) – manual slide-loading with safety sensor for precise heavy-duty crimping.
Pillar Set Applicator is built for heavy-duty loose terminals up to 3 mm and 95 sqmm.
It includes a manual slide, safety sensor, tool-free maintenance, and compatibility with multiple presses.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Safe Operation
Equipped with a safety sensor and manual slide for operator protection.
Low Maintenance
Tool-free maintenance simplifies servicing and reduces downtime.
Flexible Compatibility
Works seamlessly with multiple press types for versatile use.
Technical Specifications
Model
CrimpPiller-20
Terminal Thickness
Upto 3.0 mm
Feeding System
Manual
Dimensions
160 x 200 x 170 mm
Wire Section
Maximum 95 mm²
Stroke
40 /50 / 60 mm
Power Supply
230 volts (50/60 Hz)
Terminal Pitch
Loose
Net Weight
8.6 kgs (19 lbs)
Crimping Height
136 /158 / 190 /212 mm
Shut Height
180 mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
