CrimpHex- Mini

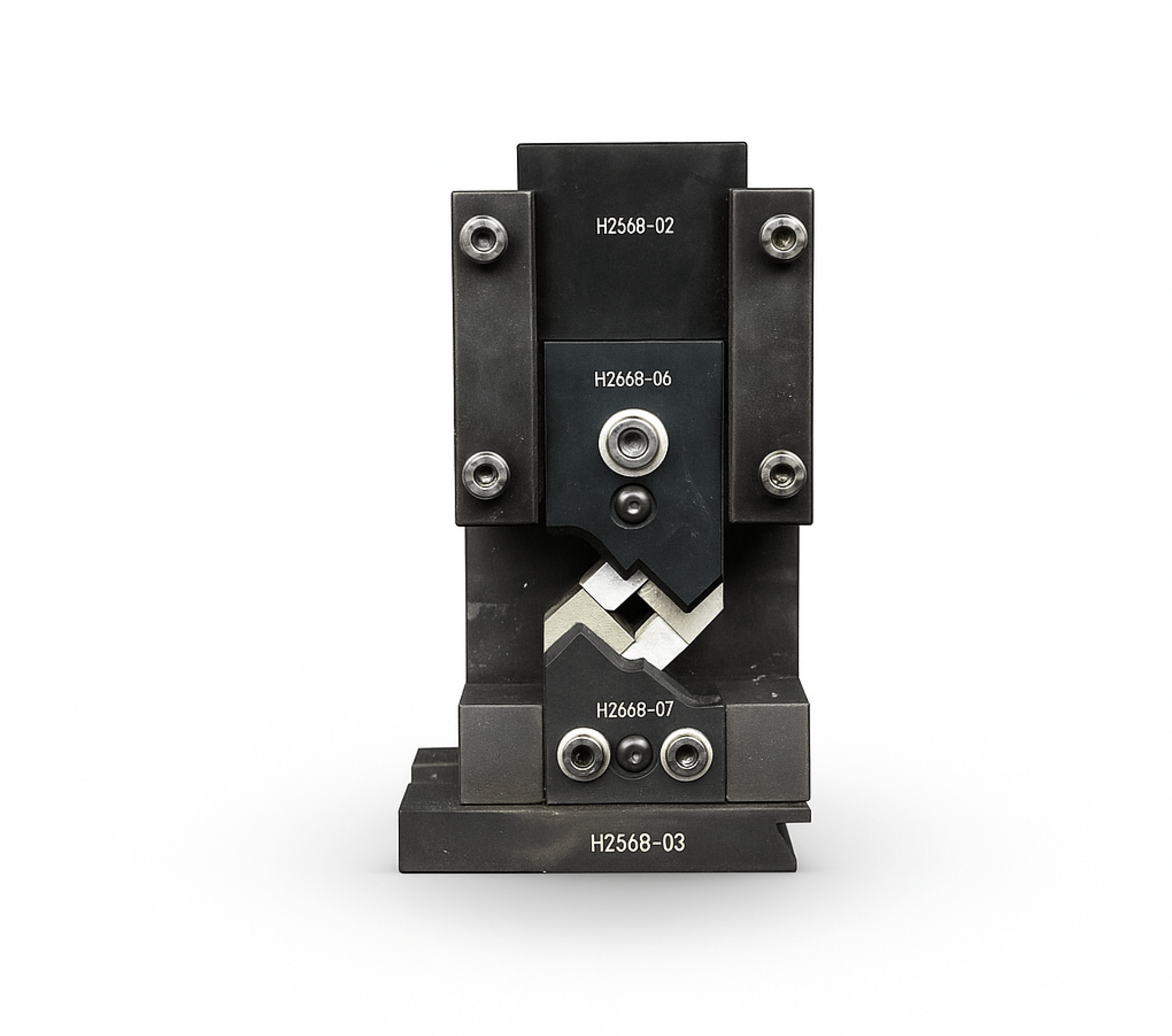

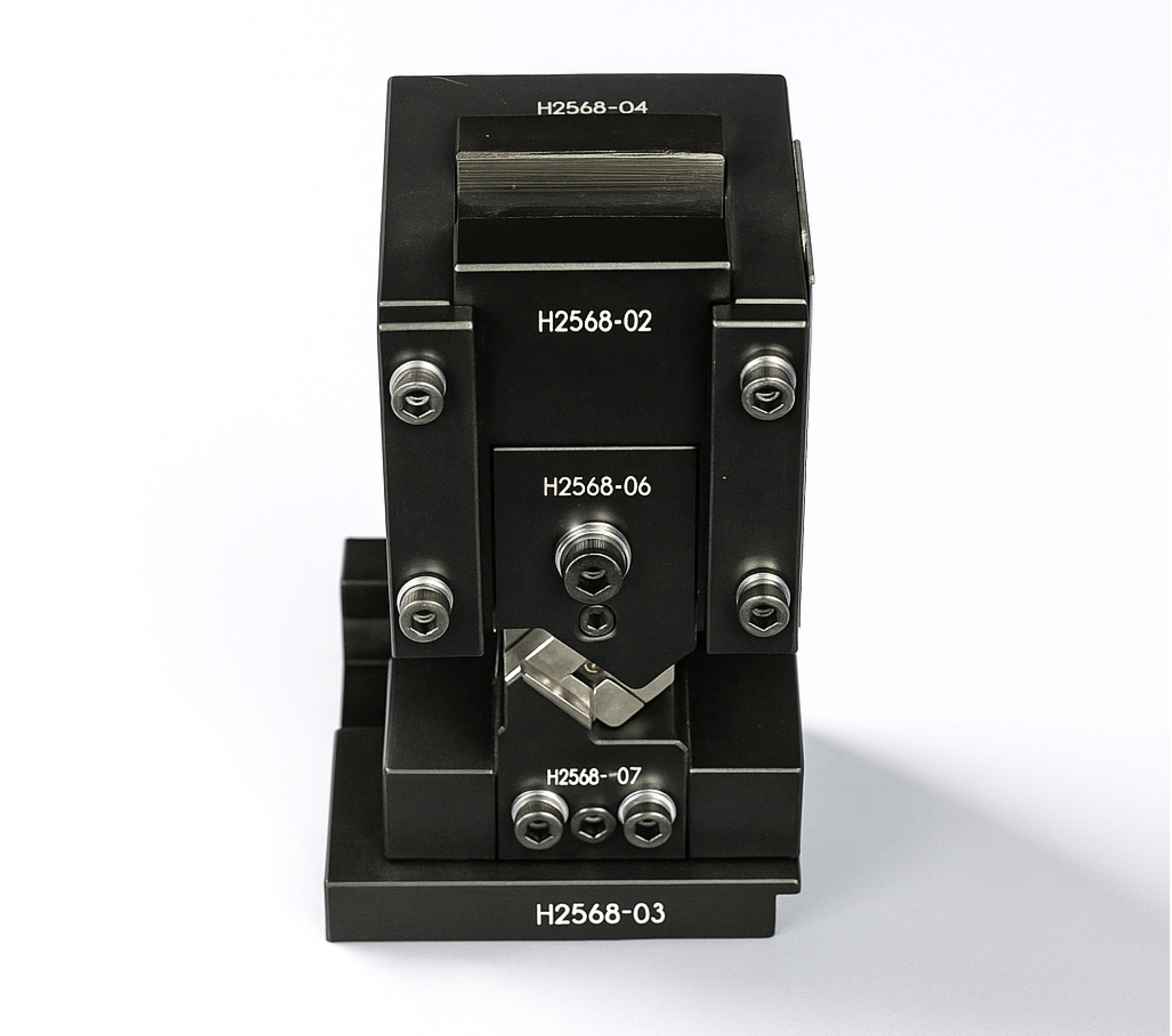

Hex Small Applicator (0.1 to 2 mm sheet thickness)

Hex Small Applicator (0.1 to 2 mm sheet thickness)

Hex Small Applicators for semi-automatic presses (180 mm shut height) – flexible for multiple closed-barrel terminals with easy Stopper Assembly change.

  • Hex Small Applicators are designed for 180 mm semi-automatic presses, modular for closed-barrel terminals.

  • They support up to 2 mm thickness, provide durability, and enable quick, cost-effective changeovers.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Modular Design

Modular Design

Specifically built for closed-barrel terminals, ensuring adaptability and ease of use.

Strong Compatibility

Strong Compatibility

Supports semi-automatic presses with 180 mm setup and up to 2 mm thickness.

Durable Build

Durable Build

Engineered for long-lasting performance under continuous operation.

Cost-Effective

Cost-Effective

Quick and efficient changeovers reduce downtime and operating costs.

Technical Specifications

  • Model

    CrimpHex- Mini

  • Compatibility/Shut height

    135.8 mm

  • Minimum Load Increment

    20 Microns

  • Wire Range

    0.5-10 sq. mm

  • Stroke

    40mm

  • Maximum terminal Length

    50 mm

  • Maximum Terminal Sheet thickness

    2 mm

  • Validation/Cross section Analysis

    Optional

  • Maximum terminal pitch

    NA

  • Non-Resettable Counter

    NA

  • Feed

    Loose

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
