CrimpHex- Medium

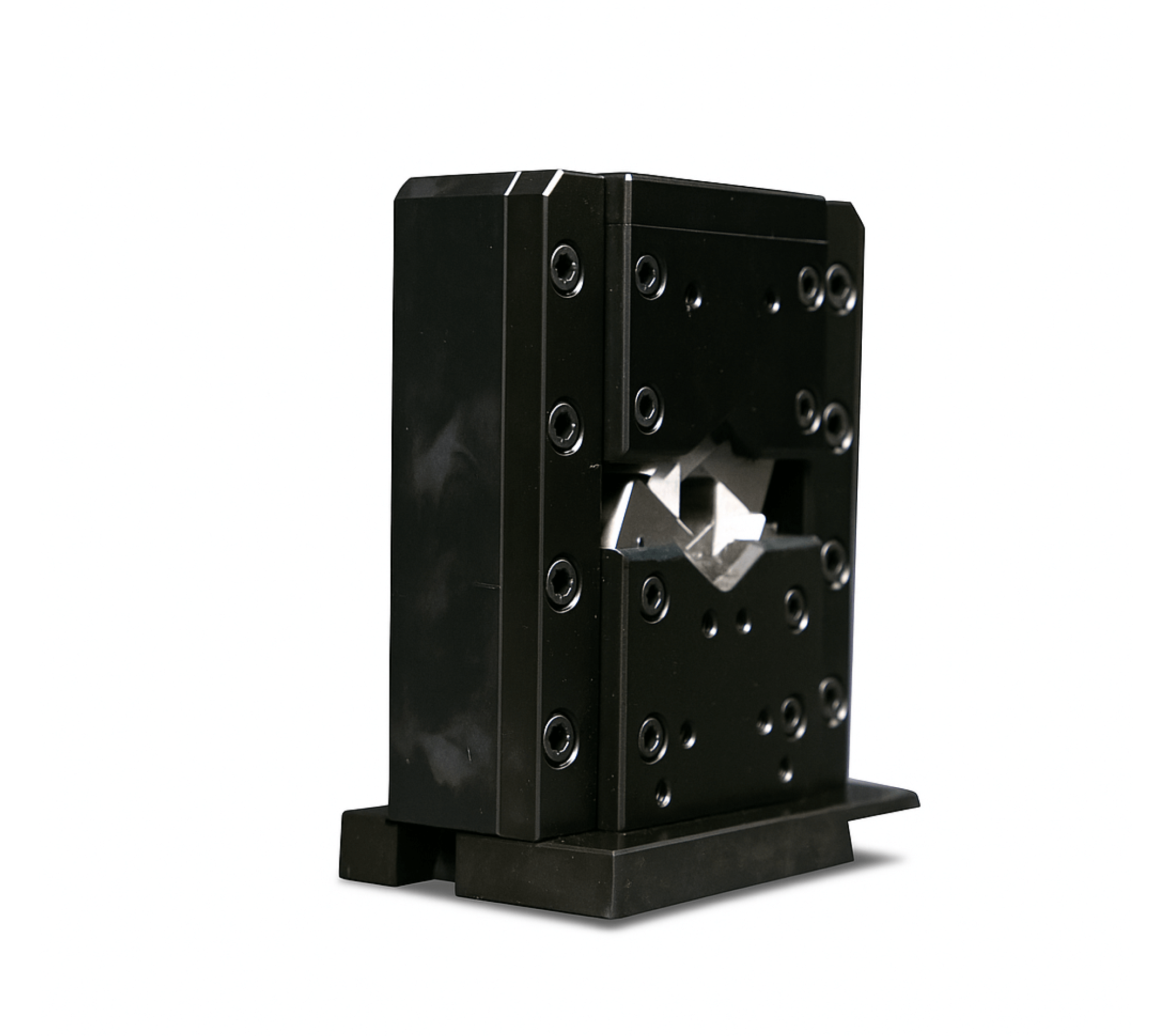

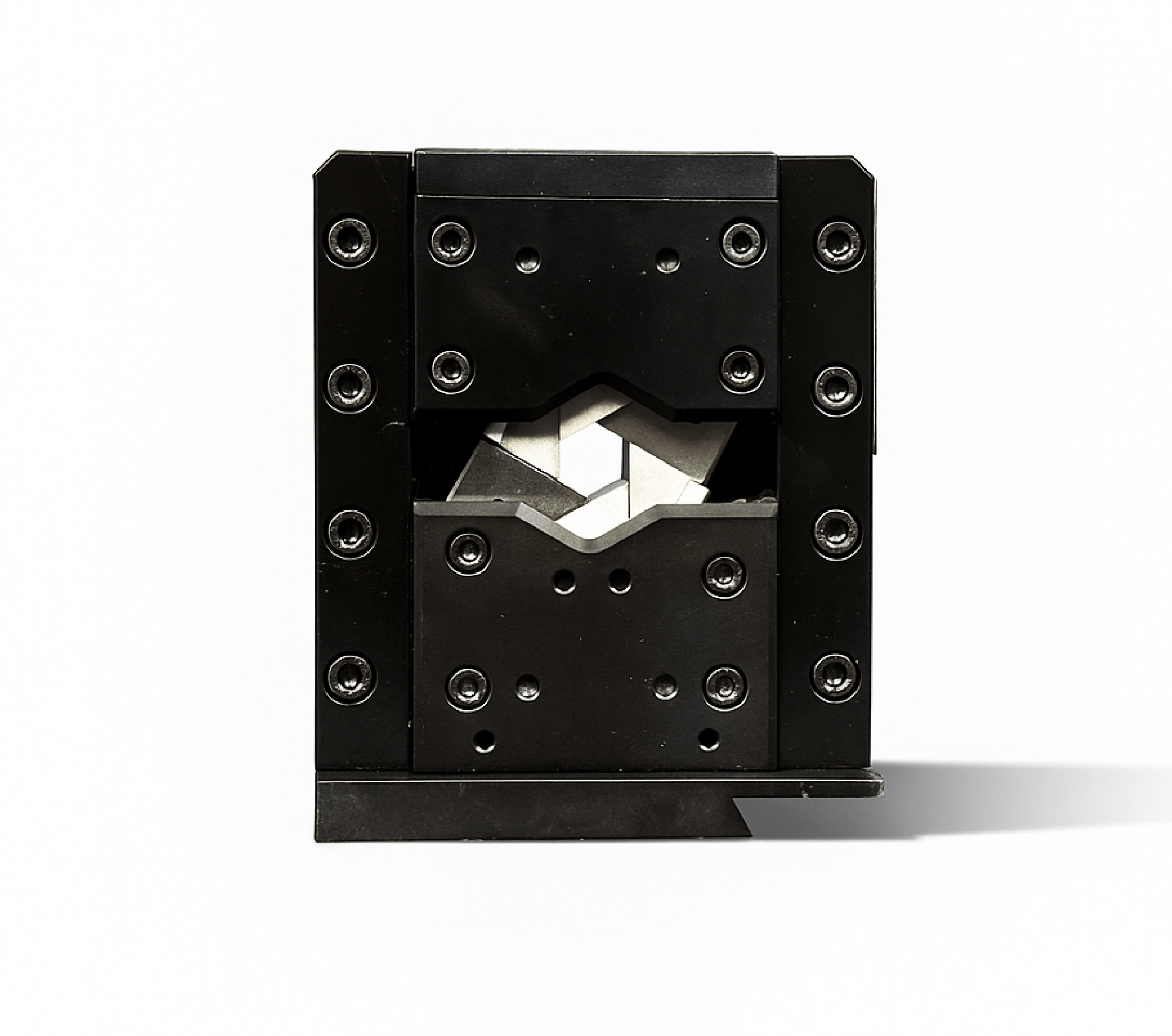

Hex Medium Applicator (0.1 to 3 mm sheet thickness)

Hex Medium Applicator (0.1 to 3 mm sheet thickness)

Hex Medium Applicators for 190 mm semi-automatic presses – flexible for various loose terminals with easy Stopper Assembly change.

  • Hex Medium Applicators are designed for 190 mm semi-automatic presses, modular for loose terminals up to 3 mm thick.

  • They ensure quick changeovers with reliable and durable performance for long-term efficiency.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Modular Design

Modular Design

Optimized for loose terminals, supporting applications up to 3 mm thick.

Strong Compatibility

Strong Compatibility

Built for 190 mm semi-automatic presses, ensuring seamless integration.

Durable Build

Durable Build

Provides long-lasting performance with reliable operation in demanding conditions.

Efficient Changeover

Efficient Changeover

Quick-change design minimizes downtime and increases productivity.

Technical Specifications

  • Model

    CrimpHex- Medium

  • Compatibility/Shut height

    190 mm

  • Minimum Load Increment

    20 Microns

  • Wire Range

    10-70 sq. mm

  • Stroke

    40mm

  • Maximum terminal Length

    80 mm

  • Maximum Terminal Sheet thickness

    3 mm

  • Validation/Cross section Analysis

    Optional

  • Maximum terminal pitch

    NA

  • Non-Resettable Counter

    NA

  • Feed

    Loose

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
