Applicators

CrimpHex-Large

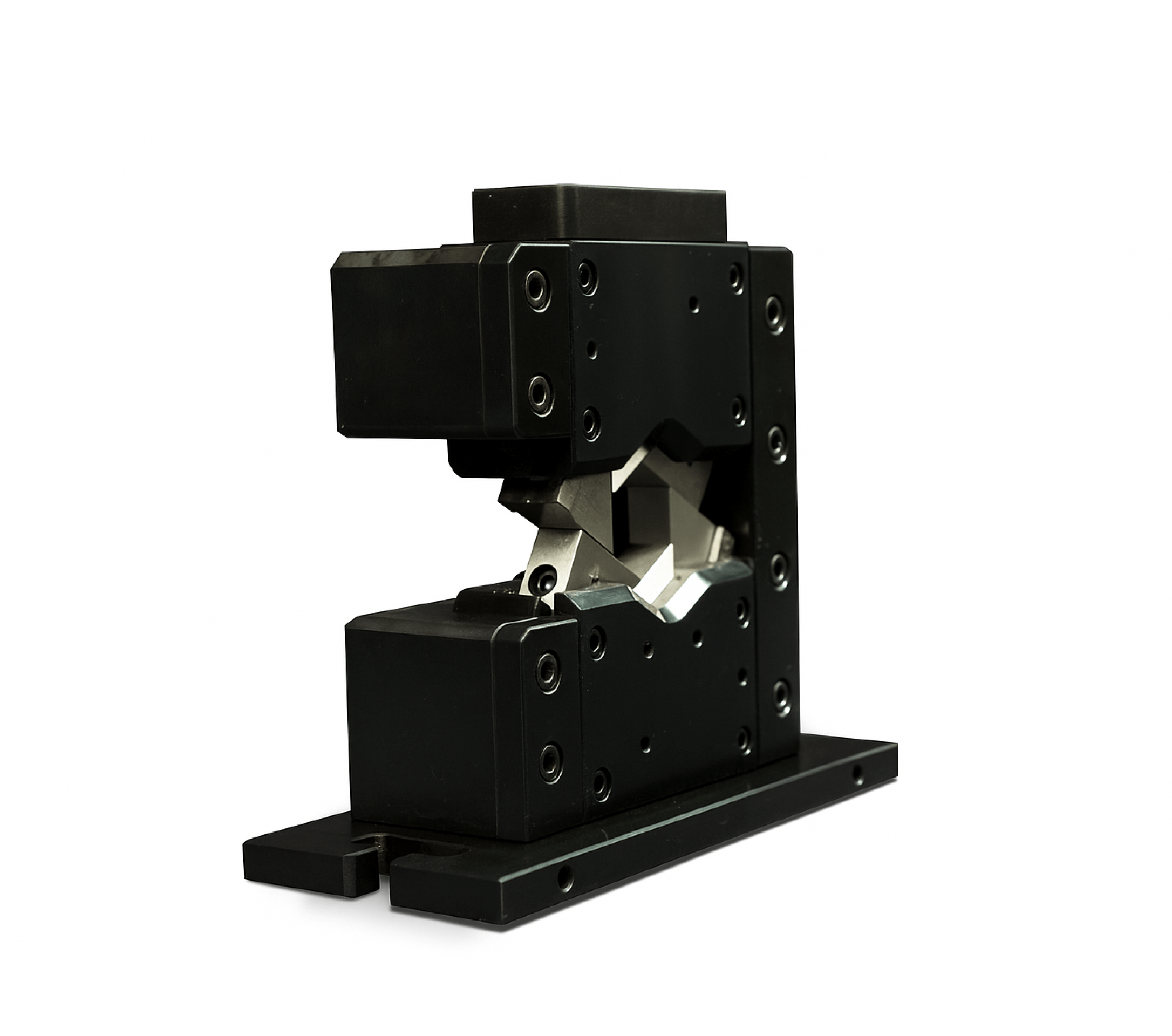

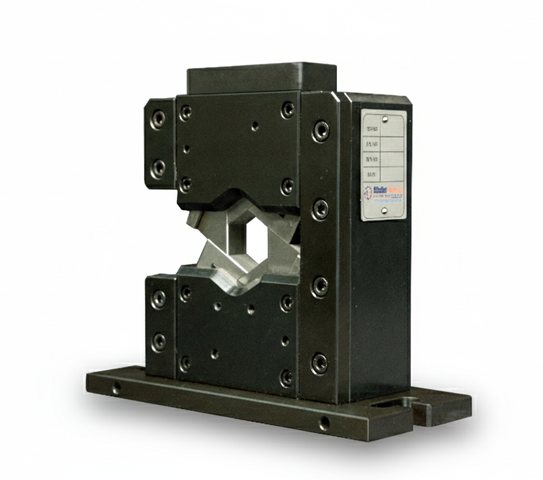

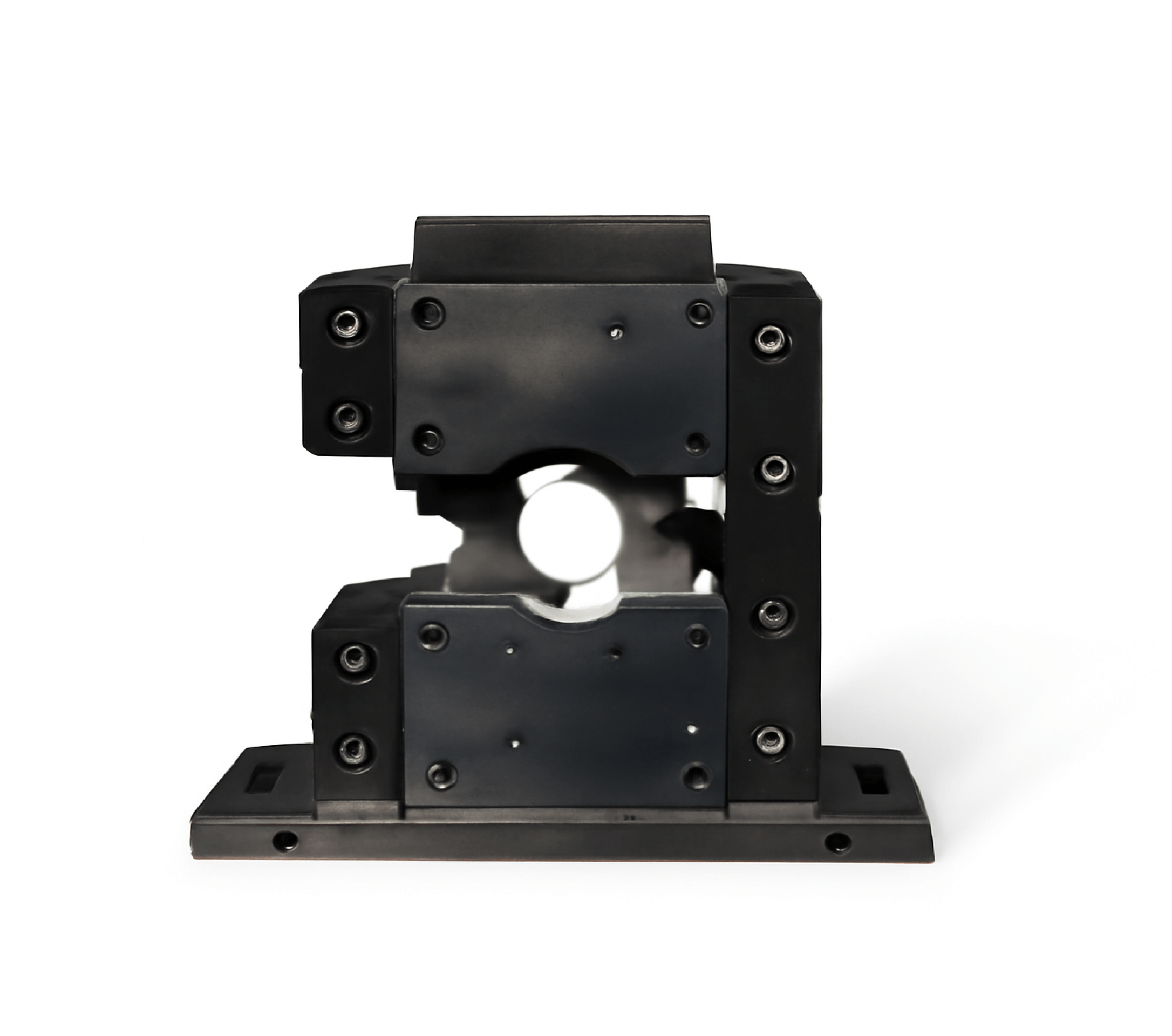

Hex Large Applicator (0.1 to 4 mm sheet thickness)

Hex Large Applicator (0.1 to 4 mm sheet thickness)

Hex Large Applicators for 212 mm semi-automatic presses – flexible for various loose terminals with easy Stopper Assembly change.

  • Hex Large Applicators are designed for 212 mm semi-automatic presses, modular for loose terminals up to 4 mm.

  • They provide quick changeovers and a durable build for reliable, long-term use.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights

Modular Design

Modular Design

Engineered for loose terminals with support for sizes up to 4 mm.

Strong Compatibility

Strong Compatibility

Designed for 212 mm semi-automatic presses, ensuring smooth integration.

Durable Build

Durable Build

Robust construction ensures reliable performance and long service life.

Efficient Changeover

Efficient Changeover

Quick-change system reduces downtime and increases productivity.

Technical Specifications

  • Model

    CrimpHex-Large

  • Compatibility/Shut height

    212 mm

  • Minimum Load Increment

    20 Microns

  • Wire Range

    70-240 sq. mm

  • Stroke

    4mm

  • Maximum terminal Length

    100 mm

  • Maximum Terminal Sheet thickness

    4 mm

  • Validation/Cross section Analysis

    Optional

  • Maximum terminal pitch

    NA

  • Non-Resettable Counter

    NA

  • Feed

    Loose

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
